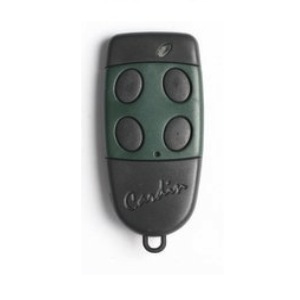

Presentation of the CARDIN S449 QZ4 Remote Control

CARDIN S449 QZ4 is a remote control for the operation of automation systems and motorized gates and garage doors. This green and black casing is programmable via self-learning.

The remote control CARDIN S449 QZ4 offers a good grip and features 4 black buttons, allowing you to easily operate your garage door, gate, and other automation systems. It works with CR2032 batteries on a frequency of 433.92 MHz.

A formidable power

The remote control CARDIN S449 QZ4 is among the most powerful models as it can simultaneously support 4 motorized and automated gates or garage doors. The radio signal emitted by this remote can pass through various obstacles such as doors, walls, windows, curtains, and many more. Thus, the user can, for example, use the device while behind the wheel without having to exit their vehicle or lower the window.

This wireless control device has dimensions of 72 mm x 34 mm x 12 mm (length x width x thickness). This compact size combined with its oval shape ensures a good grip on the remote control.

Aesthetics and reliability are the key words

The CARDIN S449 QZ4 features a sleek design with the green and black color of its casing. To operate, it requires a CR2032 battery. Being low energy-consuming, you won’t have to change the battery for a long time.

Guaranteed durability

This device is made from high-quality electronic components and materials that are both sturdy and resistant. The risks of bugs or malfunctions are therefore minimal, if not nonexistent. This remote will withstand regular and long-term use perfectly and is unlikely to be easily damaged by potential shocks.

It is important to note that reliability is a crucial element for this type of equipment, as it ensures the safety, opening, and locking of gates and garage doors. Malfunctions can cause numerous inconveniences for the user.

Programming this remote is very easy as it uses a self-learning system. It should be noted that the CARDIN S449 QZ4 is also available in a two-button variant, which you can acquire here.

The advantage of Alloremotecontrol

As a guarantee of quality and to fully satisfy its customers, Alloremotecontrol offers you a one-year warranty on all its products. Even better, you can opt for an additional second year of warranty at the time of placing your order (see T&Cs).

Compatibility of the CARDIN S449 QZ4 Remote Control

The CARDIN S449 QZ4 GREEN remote is compatible with the following models:

• The CARDIN S449-QZ1 device
• The CARDIN S449_QZ3 model
• The CARDIN S449-QZ4 gray remote
• The CARDIN S437-2 transmitter
• The CARDIN S 437-4 remote

But also with the CARDIN RCQ449 ND00 Radio Receiver and the CARDIN RPQ449IT0.

Note: This green casing is also compatible with the gray casing.

Programming the CARDIN S449 QZ4 Remote Control

How to set up and configure the CARDIN S449 QZ4 remote control?

Before the CARDIN S449 QZ4 remote can function, you will first need to configure it so that it can connect with the receiver of your motorized and automated gate or garage door.

Programming or setting up this device is very easy as it employs a self-learning system. Therefore, calling a technician is not necessarily required. There are two types of methods that allow you to easily program the CARDIN S449 QZ4.

First, by using a pre-programmed remote or by using the receiver of your automated gate. Each of the two methods will only take a few minutes of your time.

Setting up the CARDIN S449 QZ4 remote via a pre-functioning remote:

1. First, place the already programmed device and the new remote near the receiver of your automated gate.
2. Then, activate the hidden button of the already programmed remote using a paperclip. This will trigger a short beep.
3. Next, press one of the buttons on the already programmed remote. This will trigger another beep.
4. Then, press one of the buttons to be programmed on the new remote. This should trigger 2 beeps from the receiver. It is essential to repeat the maneuver as many times as there are buttons to be programmed.
5. Congratulations, your new remote is ready to be used.

Setting up the CARDIN S449 QZ4 remote via the receiver of your gate:

1. First, open the casing of the receiver of your automated gate.
2. Then, on the motherboard of the receiver, you will find a small “MEMO” button.
3. Next, you will need to press and hold it down. This will trigger a small light to blink.
4. While holding down the “MEMO” button, take the new CARDIN remote and press one of the buttons to be memorized. The small light on the receiver will turn off.
5. Simultaneously release the button on the new remote and the “MEMO” button. This will cause the receiver’s light to blink again.
6. Then, press the button on the CARDIN remote one last time to save the settings.
7. You will need to repeat the maneuver as many times as there are buttons to be programmed.
8. You can now use your new remote.

FAQ for the CARDIN S449 QZ4 Remote Control

Can I configure my new transmitter in a shared property?

In a collective setting, it is sometimes impossible to register a new remote, as the radio receiver is intentionally locked by the system installer. Check this with your administrator.

Are there other models of CARDIN remote controls on Alloremotecontrol?

Of course. You can discover other models of Cardin gate remotes here:

• The Cardin S449 QZ2 remote
• The Cardin S38 TX2 transmitter (replaced by the new S738 TX2)
• The Cardin S38 TX4 device
• The Cardin S38 TX8 remote
