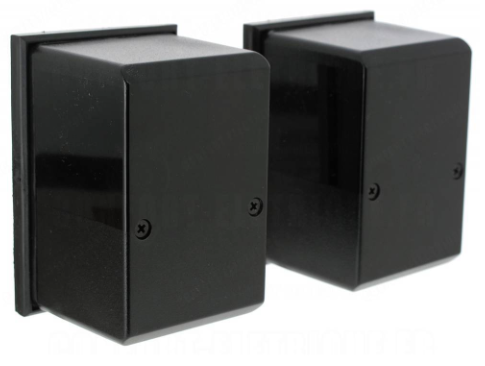

Presentation of CARDIN CDR851 photocells To ensure your safety and that of your engine, trust the CARDIN brand. Thanks to CARDIN CDR851 photocells, your motorization, your gate and the environment around you will be protected up to a range of 60 meters. That is to say that the infrared ray of the photocells will be able to monitor your passage where your gate or automatic door is installed. How it works ? Well, if between the transmitter cell and the receiver cell, the infrared beam is not received, this indicates that an obstacle stands in front of your engine. CARDIN CDR851 photocells then come into action to prevent damage to your systems. A tilting optical head To be installed on a surface, this pair of CARDIN CDR851 photoelectric cells is powered by 12-24 V (AC-DC). Its optical head is adjustable horizontally and vertically. With this, you can even rotate 180° (horizontally) and more or less 30° vertically compared to the basic position. This way, you can improve the efficiency of the infrared rays of your photocells. Elegance and discretion The rectangular dimensions of the CARDIN CDR851 photocells should not scare you. With 90 mm in height, 60 mm in width and 56 mm in thickness, the installation of these requires very little space. In addition, the black dress which surrounds the photocells guarantees you certain discretion. So, inside and outside your home, you will not have to worry about the contrast of this object in relation to your environment. Protected against jets of water Tested to be resistant to you, CARDIN CDR851 photocells have an IP 55 protection index. That is to say, they are protected against dust and against jets of water coming from all directions. directions to the lance. They are contained in a shockproof plastic case designed for all fixing systems. Elements of CARDIN CDR851 photocells When you buy these CARDIN CDR851 photocells, you get the following products inside: A spotlight 1 receiver in the base box Two closing glass slats for outdoor photocells Two plates for quick fixing on wall Screws and joints Installation of CARDIN CDR851 photocells Note: Installation is possible on all types of structures. It allows standard positioning and lateral positioning (thus putting the devices out of range of the passage distance) and the positioning of the projector and the receiver at different levels (to avoid problems on particular structures). To install your CARDIN CDR851 photocells on the surface: First, choose the surface fixing points according to the installation requirements. Then, plan the route of the cables on the structure to the fixing points. Then attach the quick fixing plates in the provided points (detail 1, fig. 4). Then pass the cables for the connections through the appropriate hole in the base box. Afterwards, pull out the plug slightly and make the connections. E When the device is connected, insert the gasket and snap between the quick-release base and the base box. The tightness of the coupling is guaranteed (detail 2, fig. 4). Finally, insert in the appropriate space of the base box, the seal and proceed (after making the appropriate adjustments) to fixing the glass cover (detail 5-6, fig. 4) If this is necessary, provide for the installation of the protective cover, supplied on request (detail 7, fig.4). For more details, including illustrations, to show you how to install this product, we invite you to consult the product manual on Allo Remote Control by clicking here. CARDIN CDR851 photocell FAQ Where can I find other CARDIN brand products? You can find other CARDIN brand products on Allo Remote Control by clicking on the link here Why buy this product on Allo Remote Control? First, know that your satisfaction is the priority. We will handle your product with great care. Then, your order is shipped the same day. Then the 1 year warranty is offered (possible extension up to 2 years – see CGV) Finally, telephone assistance (08 99 25 30 57) or by email (assistance@alloremotecontrol.com) available 5 days a week
