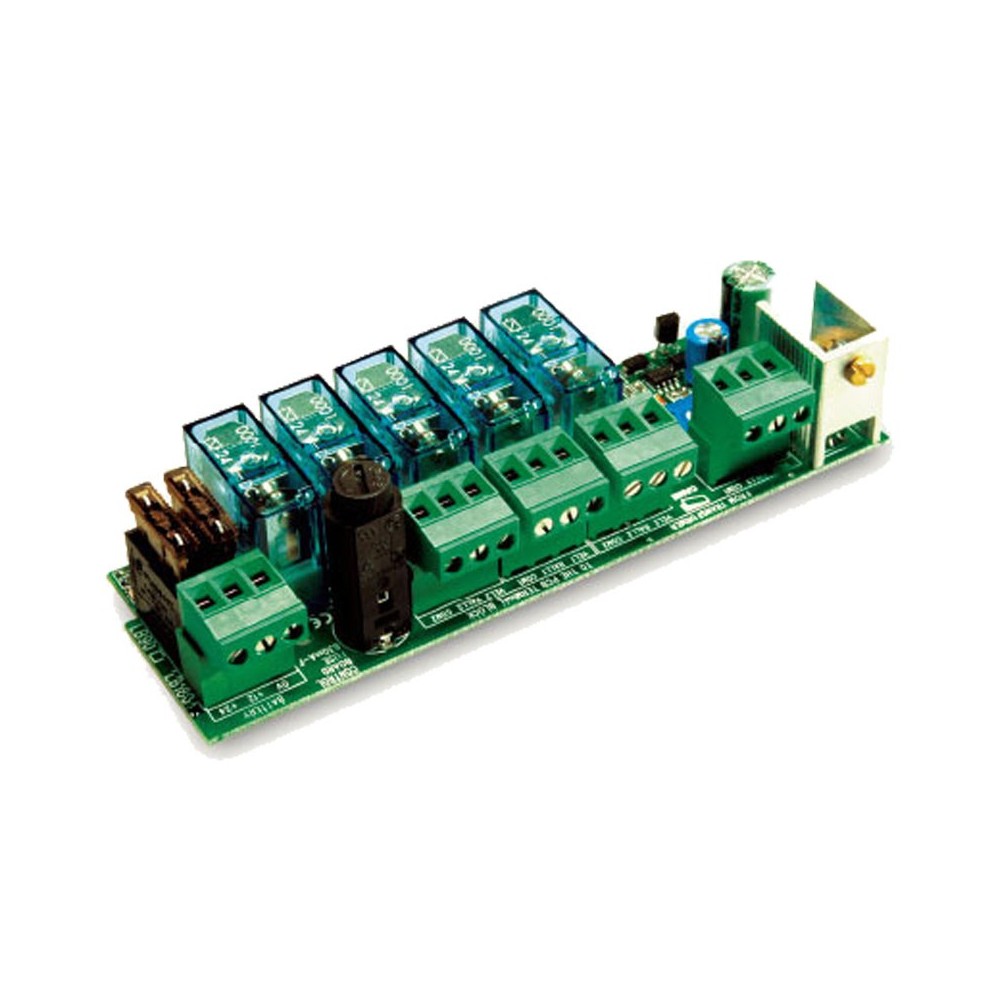

Presentation of the CAME LB90 electronic card Be reassured in the event of a power outage This CAME LB90 electronic card is a card that allows the connection of two emergency batteries. This directly on your swing or sliding entrance gate automation. This means that thanks to this electronic card, your motor will be able to operate optimally, even if a power outage occurs. Emergency device, the emergency batteries concerned are those with a 12V – 1.2 Ah power supply. Thanks to this electronic card, you will no longer be embarrassed in the event of a power outage in your home. What are the components of the CAME LB90 electronic card: The components of the electronic card are as follows: A 630 mA card fuse A connection for fuse, the batteries must be inserted A yellow diode (LED) which indicates operation with the batteries A red LED which indicates that the batteries are discharging A green LED which means the presence of linear voltage Compatibility of the CAME LB90 electronic card Also, this electronic card is compatible with the following control cabinets: The CAME ZL90 The CAME ZL190 The CAME device ZN2 Installation of the CAME LB90 electronic card Caution: The installation procedure must only be carried out by professional installers or by competent personnel. For more information on the procedure to follow, we invite you to consult the PDF product instructions on Allo Remote Control by clicking here To install this card inside the control cabinet: Open the control cabinet. Position the card and secure it as shown in the figure. Disconnect the transformer from the automation electronic board and reconnect it to the battery charger board. Connect the two cards together using the cable provided for this purpose. Position the batteries in the cabinet and secure them using the brackets. Connect the batteries together as shown in the figure. Connect any electric lock. Position the batteries in a junction box (not supplied) provided outside the cabinet. To install this card inside the automation Open the automation. Connect the card to the batteries as indicated in the instructions. Position the batteries at the bottom of the support. Disconnect the transformer from the automation electronic board and reconnect it to the battery charger board. Connect the two cards together using the cable provided for this purpose. Insert the card by sliding it on the rails. CAME LB90 electronic card FAQ Where can I find other CAME brand products? You can find other CAME brand products, whether remote controls, receivers, code keypads, on the Allo Remotecontrol website by clicking on the link here. Why buy this product on Allo Remotecontrol? – Delivery is free for the purchase of two remote controls or more – Your order is dispatched the same day – A 1-year warranty is offered (possible extension up to 2 years – see T&Cs) – Telephone assistance (08 99 25 30 57) or by email is available 5 days a week – In the event that the customer notices a defect in the product, he has 15 days from his purchase to return it to Allo Remotecontrol.
