Presentation of the CAME FAST 70 24V Kit (U1855)

Do you want to motorize your swing gate? Look no further, you have everything you need with the CAME FAST 70 Kit. Made up of the best elements from the CAME brand, this kit will allow you to motorize your swing gates thanks to the various high-performance products from the Italian manufacturer.

The FAST 70 model is recommended for swing gates measuring up to 2.3 meters per leaf, with a maximum distance of 200 mm between the gate pivot and the wall where the motor is mounted. In case of a power outage, a release lever allows you to manually open the gate. Additionally, an integrated electronic circuit allows you to stop or reverse the movement of the gate in case of contact with obstacles.

High-Performance Elements…

This product is equipped with various quality elements to operate your door. The CAME FAST motorization, which is the basis of this kit, is equipped with an electronic board that has a functional screen as well as an integrated radio decoder with an articulated transmission arm. Furthermore, this kit includes a CAME AF43S receiver. It operates at a frequency of 433.920 MHz and can be powered by 12 V/24 V (AC/DC). It has two channels and is perfectly suitable for residential use. The CAME TOP44RBN (Ref: 806TS-0270) is a transmitter incorporating the latest technologies from the CAME brand. This model, operating at a frequency of 433 MHz, allows for secure configuration of your new transmitter. It also uses a rolling code, capable of generating over 4 billion combinations.

But Also Secure!

However, the performance of these products is not the only selling point of this kit. Because this kit is also secure. It has a set of safety photocells with a range of 10 m that detect if an obstacle is in the path of your motorization. Additionally, these are coupled with a CAME KRX Flasher (806LA-0030) that signals with a very bright light the opening or closing of your door.

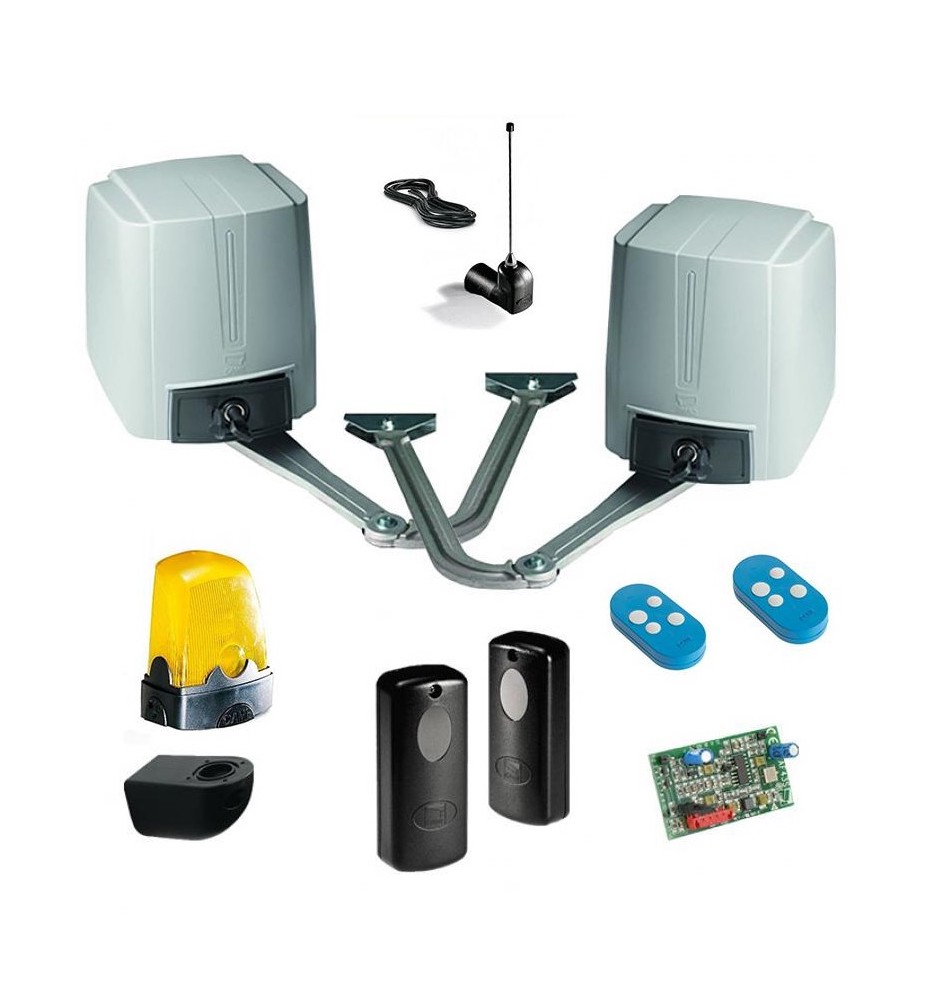

Composition of the CAME FAST 70 24V Kit (U1855)

This kit consists of the following products:

• An irreversible CAME 001FA7024CB motor reducer with an electronic board with a functional screen and integrated radio decoder and articulated transmission arm
• An irreversible CAME 001FA7024 slave motor reducer with articulated transmission arm
• A plug-in radio receiver CAME AF43S
• Two CAME TOP44RBN (806TS-0270) remote controls which are four-channel rolling-code transmitters
• A set of safety photocells, range 10 m CAME DIR10
• Then a CAME KRX (806LA-0030) LED signaling flasher with 24 AC-DC power supply at 230V AC with yellow dome and integrated antenna. (1)
• CAME 806LA-0040 wall mounting bracket for KRX. (1)
• A CAME 001TOP-RG58 cable for antenna connection.

Programming the CAME FAST 70 24V Kit (U1855)

Installation of the CAME AF43S Radio Receiver

How to program my remote control to my receiver:

1. Open the radio receiver (you need to follow the antenna wire to locate it).
2. Press the push button on the receiver. It is identifiable because it is labeled MEMO; REC; ENR; PROG on the radio board (for some receivers, you just need to press the MEMO button once and release it. For others, you need to hold the MEMO button down).
3. A light on the radio board lights up or blinks.
4. Press the button on your remote control for a second and then release it.
5. Wait for the light on the radio board to turn off.
6. Test the remote control and close your radio receiver.
7. Congratulations! Your remote control is now programmed.

For more information on programming your receiver, we invite you to consult the product programming manual on our site by clicking here

Setting Up the CAME TOPD4RBS

How to program your remote control using an old remote control (in four steps):

1. Take your old and new remote control. Get close to your receiver (within a maximum distance of 5 m)
2. Then press the already programmed button on your old remote control for 10 seconds. Its LED should become steady.
3. Then you have 20 seconds to register the button of your choice on your new remote control by holding it down. You can register multiple remote controls at once.
4. Congratulations! Your new remote control is programmed!

For more information on programming your remote control, we invite you to consult the product PDF manual on our site by clicking here

Installation of the CAME DIR10 Photocells

To install your CAME DIR 10 photocells, you must:

• First, position them facing each other
• Then fix the photocells at a height of about 50 cm from the ground.
• Also, if necessary, plan for the housing of the base for recessed mounting and fix it
• Moreover, secure the housing to the wall or base using the provided screws and any necessary plugs
• Finally, select the type of power supply and make the necessary connections.

Attention: To remove the board, only force on the indicated side. Secure the cover.

For more information, we invite you to consult the manufacturer’s manual here

FAQ of the CAME FAST 70 24V Kit (U1855)

Can you tell me more about the CAME brand?

First, the CAME brand is an Italian brand founded in 1970. Next, specializing in motorization and automatic opening systems, the Italian firm is a key player in the security field. With receivers, remote controls, or other accessories, the company, which has been around for over forty years, is one of the leaders in the home automation market. Finally, all innovations coming from CAME’s HQ in Italy are designed to best meet customer demand.
