Presentation of the BFT Pro E5 SMART BT A12 Kit

Motorizing your pedestrian gate is no longer impossible with the BFT Pro E5 SMART BT A12 Kit (R881010-00002). Its central component is the BFT E5 BTA 12 motor. This is a 24 V powered operator with a maximum power of 100 W, designed for gates. This system has a maneuvering speed between 4.5 seconds and 6.5 seconds, allowing for easy motorization of pedestrian gates. Smaller in size compared to its products, the BFT E5 BTA 12 motor is equally well-equipped technologically. Indeed, it features the D-Track system and the U-Link device. The former allows for torque control of the motorization and adapts to update the necessary pushing force. The latter facilitates interaction with access control automation. All this automation would not work without the BFT THALIA L control unit (D113745-00002). This unit is indeed used to program the entire system.

Two remote controls provided for quality use

Additionally, two 2-channel transmitters BFT Mitto B RCB02 are included in this kit. Operating on a frequency of 433.92 MHz and coded in rolling-code – ensuring greater security than a standard remote control – the BFT Mitto B RCB02 are the transmitters you need. Moreover, with a height of 64 mm, a thickness of 16 mm, and a width of 41 mm, you will have no excuse not to have it with you at all times. Furthermore, they are equipped with two channels. This indicates that you can assign two different commands to your remote control.

To top it all off, photocells are included in this device. The BFT THEA have a range of 30 m and can detect obstacles that may hit your gate. But thanks to this device, whether it’s a child, an individual, an object, or something else, at the slightest detection (via infrared signals), your motorization will stop and reverse. This ensures safety and peace of mind.

Usage of the BFT Pro E5 SMART BT A12 Kit

This kit is usable with:

• pedestrian gates up to 80 kg and 1.2 m in length

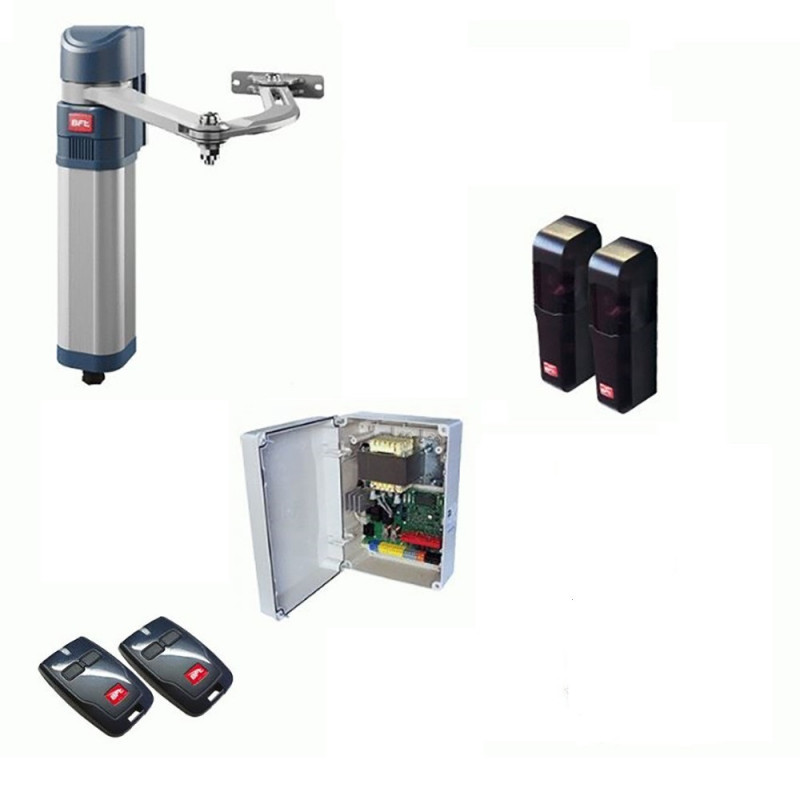

Composition of the BFT Pro E5 SMART BT A12 Kit

According to the manufacturer, the following products are included in this kit:

• one BFT E5 BTA 12 motor (P930027-00003)
• one BFT THALIA L control unit (D113745-00002)
• two 2-channel remote controls BFT B RCB02 (D111904)
• photocells BFT THEA (P111528)
• an articulated arm of type BFT N734921 completes

Installation of the BFT Pro E5 SMART BT A12 Kit

For more information on the installation of this product, please refer to their user manual, available in paper form within the kit. Also, note that the manual for the motor included in this kit is available in PDF on the Alloremotecontrol website, by clicking here. If you wish to learn more about your remote control, please click here to consult a manual dedicated to this product.

FAQ of the BFT Pro E5 SMART BT A12 Kit

Can you tell me more about the BFT brand?

In operation since 1981, BFT is an Italian company with over 30 years of experience in the field of home automation. Remote controls, receivers, code keyboards, and many other references are part of the accessories for your automation that they produce. Known for their design quality, the products and spare parts of the Italian manufacturer are exported throughout Europe. It is also worth noting that the SOMFY group acquired the company in 2014. Thanks to this acquisition, the company has been able to expand its market internationally. Furthermore, BFT has over 160 employees in Italy and more than 90 staff at its foreign sites.

Where can I find other products from the BFT brand?

You can find other devices from the BFT brand on Alloremotecontrol, by clicking here.
