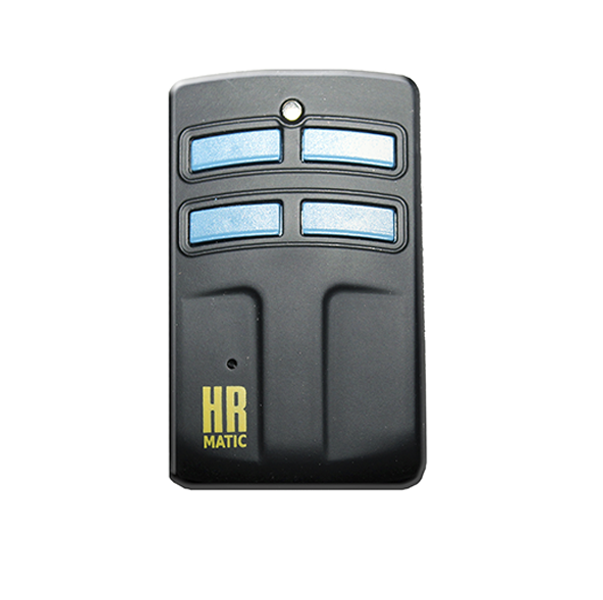

Presentation of the HR MULTI 2 Remote Control

The HR MULTI 2 remote control is designed for controlling automation and motorization of gates and garage doors. This black casing is programmable through self-learning.

It offers a good grip and features 4 blue buttons. It operates with CR2032 batteries on multiple frequencies from 433 to 868MHz. The HR MULTI 2 remote control with 4 channels is a durable transmitter, perfectly suited for residential use.

The HR MULTI 2 can copy the code of all fixed code or rolling code transmitters that use a frequency between 433 and 868 MHz. Its programming is done via a few simple manipulations on the buttons.

Copying a remote control, for what purpose?

Copying remote controls with codes is ideal for collective parking and condominiums. Cloning is done by contacting a remote control that is already programmed to your gate. However, be sure that you can copy the original remote control, especially in a condominium, as the syndicate may reserve the right to prohibit any copying of a provided remote control. In case of doubt, call your syndicate.

Ideal dimensions for a good grip

The HR Multi 2 transmitter is only 55 mm long, 34 mm wide, and 10 mm thick. It is a very ergonomic device designed to last. Its small size makes it very easy to handle and use. This gate remote control is very resistant due to its toughness and impressive solidity even under heavy impacts and strong pressures.

Compatibility of the HR MULTI 2

This HR MULTI 2 remote control is compatible with a majority of remote controls from different brands, here is the list:

For fixed code remote controls:

• Beninca: LO.T2WMS, T2WK/T4WK, TO.GO2WP/TO.GO4WP
• Bft: TEO2, TEO4
• Came: TAM 432 SA, TOP 432 NA/TOP 434 NA, TOP 432 SD, TOP 432 EV/TOP 434 EV
• Dea: TD2/TD4, Genie 263, Gold 238, Gold 239
• Faac: TM1/TM2/TM3 433 DS, TM1/TM2/TM3 868 DS
• Hormann: remote controls with a frequency of 868.3 MHz (except BiSecur version)
• Key: TXB-42, TXB-44
• Marantec: remote controls with a frequency of 433.92 MHz and 868.3 MHz
• Nice: FLO1/FLO2/FLO4, Very VE
• Roger: E80 TX52R, E80 TX54R, M80 TX44R

For rolling code remote controls:

• ADYX: Bravo, TE4433
• ALLMATIC: B.RO OVER, B.RO2WN, TECH3
• APERTO: 4022 (TX02-434-2), TX03-434-4
• APRIMATIC: TR2, TR4, TM4
• BENINCA: TOGO2, TOGO4, CUPIDO2/4, T2VW/T4VW, LOT2WCV, IO
• BFT: TRC2, TRC4, GHIBLI, HLEIO, MITTO 2/4, MITTO 2RCB, MITTO 4RCB, VTM2
• CARDIN: S449 QZ2, S449 QZ4, S486 QZ2, S486 QZ4
• CHAMBERLAIN: 94335E
• DASPI: ZERO2RC, ZERO4RC
• DEA: TR2 MIO, TR4 MIO
• DITEC: GOL4, GOL4C, BIXLP2, BIXLG4
• DOORHAN: EMETTEUR4
• ECOSTAR: RSE2, RSC2
• FAAC (master models only): XT2/XT4 433-868 SLH, DL2/DL4, TML2/4 433 SLR, T2/T4 433-868 SLH, XT4 433 RC
• KEY: 900TXB, 42R, SUB-R
• FADINI: JUBI SMALL
• GENIUS: BRAVO 433, AMIGO, AMIGOLD, KILO
• GIBIDI: AUO1590, AU1600, DOMINO
• HORMANN: HSM4 868 – HSE2 868
• KING GATES: STYLO
• LABEL: SPYCO
• MHOUSE: TX3, GTX4
• MOOVO: MT4
• NICE: ON2E, ON4E, INTI, FLO2R-S, FLO4R-S, VERY VR, SMILO
• NOVOFERM: MNHS433-02, NOVOTRON MAX 502
• O&O: TWIN, TX2/TX4 (NEO)
  • the transmitter T.COM R4-2
  • the T.COM R4-4
  • the remote control T.COM R8-2
  • T.COM R8-4
• PRASTEL: TC2E, TC4E, MT2E, MT4E, SLIM2, SLIM4, BFOR, MPSTP2E
• PUJOL: VARIO, MARTE
• RIB: LITHIO
• SEAV: BE HAPPY RS2
• SIMINOR: S433-4T/S433.4T SIMINOR, 433-NLT42/433-NLT4
• SOMFY: KEYTIS NS2 RTS, KEYGO
• SOMMER: 4020 (TX03-868-4), 4026 (TX03-868-4)
• V2 Elettronica (433 and 868 MHz):
• DELMA MIZAR 433MHZ 2CH
• TAU 250-K-SLIM-RP
• HR RC868S
• SIMPLE 433-4
• V2 MATCH
• HR R433AF4
• DEA GT4M

How to program the HR MULTI 2?

Note: Please ensure you have the original remote control in working condition if you order this compatible model, as programming will be done through self-learning.

If your remote control is of the rolling code type, programming will be done in 2 steps:

1. Cloning the signal between the 2 transmitters
2. Programming the new remote control into the receiver

Standard procedure: programming from an already programmed remote control

1. Press and hold button 1 on the MULTI2, while keeping it pressed, press button 2 four times. Release the buttons, the LED of the MULTI2 blinks slowly.
2. Place the already programmed remote control and the MULTI2 at a distance of 3 to 4 cm. While the LED of the MULTI2 blinks, press a button on the already programmed remote control until the LED of the MULTI2 blinks quickly. Release the button.
3. On the MULTI2, while the LED blinks, press the button you want to register, the LED lights up steadily and then turns off. Release the button.
4. If your already programmed remote control is a fixed code, your new remote control is programmed at the end of step 3. If your already programmed remote control is a rolling code, follow the instructions of your receiver to register the new remote control.

BFT receiver: programming the MULTI 2 from a BFT B RCB02/04 or BFT MITTO 2M or FAAC XT2/4 SLH already programmed remote control

1. Press and hold button 1 on the MULTI2, while keeping it pressed, press button 2 four times. Release the buttons, the LED of the MULTI2 blinks slowly.
2. Place the already programmed remote control facing the MULTI2 at a distance of 3 to 4 cm. While the LED of the MULTI2 blinks, press a button on the already programmed remote control until the LED of the MULTI2 lights up steadily, release the button. The LED of the MULTI2 emits a series of successive blinks.
3. While the LED of the MULTI2 blinks, press both upper buttons of the already programmed remote control until the LED of the MULTI2 blinks quickly. Release the buttons.
4. On the MULTI2, while the LED blinks, press the button you want to register, the LED lights up steadily and then turns off, release the button.
5. You can register the remote control remotely if the function is enabled on the receiver; otherwise, it will need to be registered manually in the receiver.

Programming the MULTI 2 on a BFT receiver equipped with the remote memory function

With the MULTI 2, stand one meter away from the receiver.

1. On the MULTI2, press and hold the button you just programmed in step 4 of the BFT procedure.
2. Wait 8 to 10 seconds while holding the button, the LED blinks. Release the button.
3. The LED turns off after a few seconds.
4. The MULTI2 is registered in the receiver.

Programming the MULTI 2 on a BFT receiver without the remote memory function

1. On the receiver board, press the programming button (SW1). The LED of the receiver blinks, release the button.
2. Simultaneously press buttons 1 and 2 of the MULTI2. Release them, the LED of the receiver becomes steady. Press the button you just programmed in step 4 of the BFT procedure. The LED of the receiver blinks, release it.
3. Wait 5 seconds, the LED of the receiver turns off.
4. The MULTI2 is registered in the receiver.
