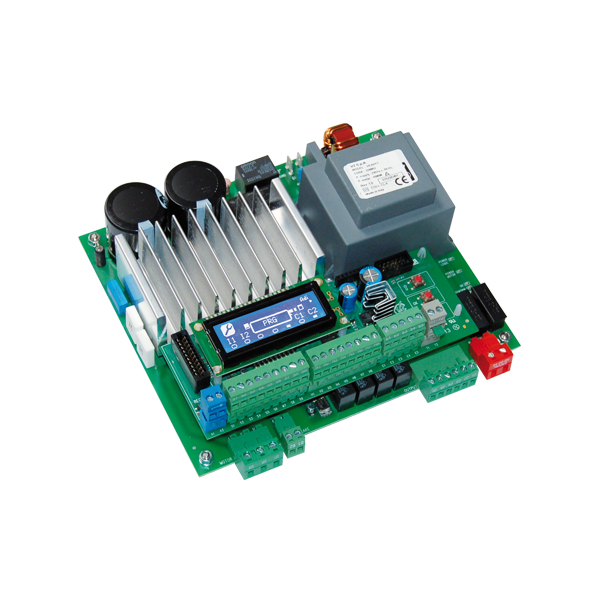

V2 HEAVY1 12B052 control unit with a plastic box
V2 Heavy-1 technical features:
- Programming with 3 program buttons and display
- Multilingual programming menu through 122×32 pixel graphic display
- Power supply for 1x230V three-phase motor (delta connection)
- Plug-in adaptor for modular radio receiver MR2
- Input for connection of an encoder
- Start control, pedal start, stop by transmitter
- Three relay outputs programmable as lights, electrolock, warning light, electrobrake or functioning test 12Vdc
- 230V flashing light output (use intermittent flashing light)
- Test of safety devices before each opening
- Precise adjustment of strength and speed during regular stroke and during slowdowns
- Self-learning function of the stroke
- Obstacle detection function through amperometric sensor
- Operational cycle counter with programmable maintenance reminder
- Monitoring of input status using the display
- Available in version with only board or housed in a container (made of plastic or metal) with safety disconnecting switch and OPEN, CLOSE and EMERGENCY STOP buttons
Additional information
BRAND | V2 |
---|---|
REFERENCE | V2 Heavy1 |
HEIGHT | 200 |
DEPTH | 80 |
WIDTH | 172 |
WEIGHT | 1800 gr |
MAXIMUM LOAD ON ACCESSORIES | 20W |
MAXIMUM TOTAL LOAD | 1500W |
BATTERY/POWER | 230V / 50Hz |
WORKING TEMPERATURE | -20 ÷ +60 °C |
