V2 Flexy2

V2FLEXY2 12G035 is a tried and tested control unit, perfect for outdoor use.



Availability: In Stock
item with Free Delivery

£179.90

Description

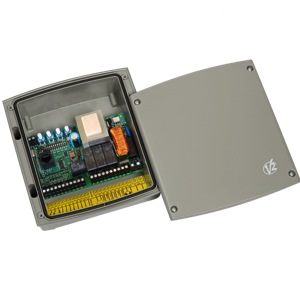

V2 FLEXY2 12G035 control unit for swing gates and sliding gates

V2 Flexy-2 technical features:

  • Adjustment and programming with trimmer and dip-switch
  • 230V power supply for 2 single-phase motors
  • Built-in receiver (433,92 MHz)
  • Possibility to store up to 240 Personal Pass transmitter
  • RJ45 connector to connect the control unit to the programmer PROG2 via standard network cable (UTP)
  • Start, pedestrian start and stop controls from transmitter
  • Open/close limit switch inputs
  • 230V flashing light output (use flashing lights with intermittence)
  • Courtesy light output (also controllable by transmitter)
  • Safety device test before any opening
  • Leaf slow-down function in limit switch area to prevent noisy closures and rebounds
  • Monitoring of input status shown by LEDs

Additional information

BRAND

V2

REFERENCE

V2 Flexy2

HEIGHT

170

DEPTH

70

WIDTH

185

WEIGHT

800 gr

MAXIMUM LOAD ON ACCESSORIES

3W

MAXIMUM TOTAL LOAD

700W

BATTERY/POWER

230V / 50Hz

PROTECTION (IP)

55

WORKING TEMPERATURE

-20 ÷ +60 °C
