Description

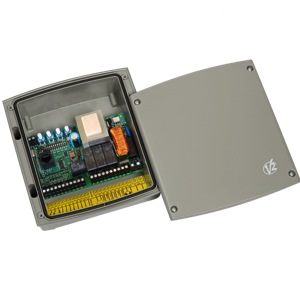

Your new Control Cabinet V2FLEXY2 12G035
Designed for outdoor use (IP55).
Your new Command Cabinet V2 FLEXY2 12G035
Here are the technical specifications of the V2 Flexy-2:
- Setting and programming by button and indicator
- Power type —> 230v with 2 single-phase motors
- It comes with a built-in radio receiver 433.92 MHz
- Memory possible for up to 240 Personal-Pass remote controls 433.92 MHz
- “RJ45” connector for connection with the PROG2 programmer using a network cable (UTP)
- Start management, pedestrian start, and stop with remote control
- Input for end of travel in opening – closing
- Output —> light 230V (use lights with intermittent operation)
- Output —> courtesy lamp (also manageable with the remote control)
- Testing of safety devices before any opening
- Timing of leaves for the end of travel zone to avoid noise and bouncing during closing
- Display of input status by LED
Additional information
| BRAND | V2 |
|---|---|
| REFERENCE | V2 Flexy2 |
| HEIGHT | 170 |
| DEPTH | 70 |
| WIDTH | 185 |
| WEIGHT | 800 gr |
| MAXIMUM LOAD ON ACCESSORIES | 3W |
| MAXIMUM TOTAL LOAD | 700W |
| BATTERY/POWER | 230V / 50Hz |
| PROTECTION (IP) | 55 |
| WORKING TEMPERATURE | -20 ÷ +60 °C |


Batteries* and instructions included
