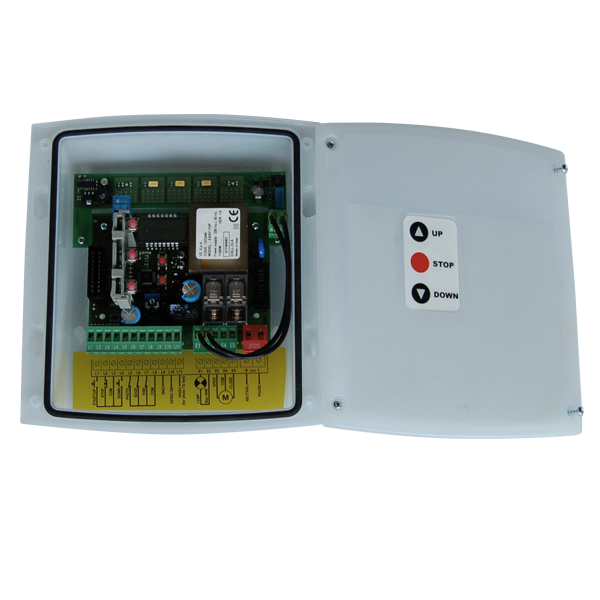

V2 Easy-Lux Plus 12c049 control unit for roller shutters
V2 Easy-Lux technical features:
Programming using program buttons and display
• 230V power supply for 1 single-phase motor
• LED courtesy light integrated into the container
• Control keypad located on the cover
• Plug-in adaptor for modular radio receiver MR2
• Up, stop, down inputs
• Up, stop, down and courtesy light controls from transmitter
• 1 photocell input with self-test function
• 1 mechanical, resistive or optical-type safety edge input with
self-test function
• 1 emergency (fire alarm / alarm) input
• 24V accessory power supply output
• 230V flashing light/courtesy light output
• Optical-type safety edge power adjustment output
• Plug-in terminal boards
• Monitoring of input status shown by display
• 230V power supply for 1 single-phase motor
• LED courtesy light integrated into the container
• Control keypad located on the cover
• Plug-in adaptor for modular radio receiver MR2
• Up, stop, down inputs
• Up, stop, down and courtesy light controls from transmitter
• 1 photocell input with self-test function
• 1 mechanical, resistive or optical-type safety edge input with
self-test function
• 1 emergency (fire alarm / alarm) input
• 24V accessory power supply output
• 230V flashing light/courtesy light output
• Optical-type safety edge power adjustment output
• Plug-in terminal boards
• Monitoring of input status shown by display
Additional information
BRAND | V2 |
---|---|
REFERENCE | V2 Easy Lux |
HEIGHT | 175 |
DEPTH | 70 |
WIDTH | 185 |
WEIGHT | 800 gr |
MAXIMUM LOAD ON ACCESSORIES | 3W |
MAXIMUM TOTAL LOAD | 1100W |
PROTECTION (IP) | 55 |
BATTERY/POWER | 230V / 50Hz |
WORKING TEMPERATURE | -20 ÷ +60 °C |
