Description
Note : This product is no longer produced by the manufacturer and is not being substituted.
Note #2 : This control panel is designed for traffic lights

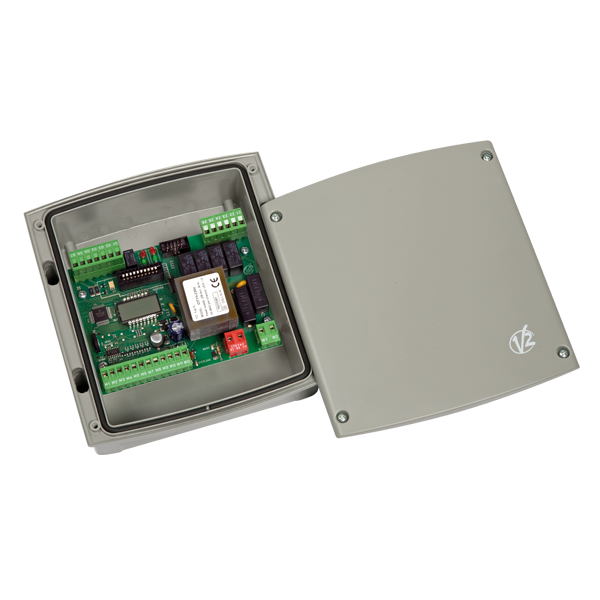

V2 City5 (Ref : 12G014) will safely control the lamps of the lights close to automatic gates with poor visibility,bent ramps, narrow passages, entrance to car parks with limited capacity and oter automation.
V2 City5 (Ref : 12G014) to control the lamps of the lights close to automatic gates with poor visibility,bent ramps, narrow passages, entrance to car parks with limited capacity
V2 City5 control unit technical features:
• Programmable polarity of the inputs detecting the presence of vehicles (N.O. or N.C.).
• Alarm input to guarantee the green light in exit in case of emergency.
• Double output to activate the control unit of the gate (N.O.and N.C. contact).
• Input for the monitoring of the gate work (opening, stop, closing).
• Socket to insert the radio receiver (mod. MR1) to operate on the opening by means of a transmitter indicating the
direction of provenance
• Power supply of the lamps of the lights independent from the main one, in order to work also with low tension lamps or mixed 230V/120V power supply.
• Input for wired up encoded control devices (digital keypad TTNC or proximity reader VRD).
• ADI connector (Additional Devices Interface) to add optional cards and remotely programme the control unit.
• Green and red leds on the card, reproducing the real situation of the lights for an easy installation and maintenance of the control unit.
• Calculation of the passed vehicles with the possibility to block the entrance to other vehicles once reached a predetermined threshold (parking capacity).
• Function of reservation while approaching in case of green light on the opposite direction, with possibility of setting the priority rules in case of request from both the ways at the same time.
