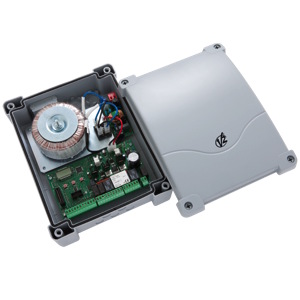

City2+ PLUS Ref: 12A024 for the control of leaf swing or sliding gates.
V2 City1 PLUS control unit technical features:
- Programming achieved using 3 program buttons and display
- Plug-in adaptor for modular radio receiver MR2
- Start, pedestrian start and stop controls from transmitter
- Auxiliary channel management from transmitter
- Emergency pack battery input
- Encoder input
- Low voltage output that can be used for a signal light or a
24 V flashing light. - Safety device test before any opening
- Amperometric sensor obstacle detection function with programmable threshold
- Operational cycle counter, with programmable maintenance reminders
- Leaf slow-down function in limit switch area to prevent noisy closures and rebounds
- Monitoring of input status using the display
- Energy Saving function
- Also available as CITY2+BC version configured to work with the ECO-LOGIC system (this version has no transformer or power supply card)
Additional information
BRAND | V2 |
---|---|
REFERENCE | V2 City2+ PLUS |
HEIGHT | 295 |
DEPTH | 100 |
WIDTH | 230 |
WEIGHT | 3000 gr |
BATTERY/POWER | 230V / 50Hz |
MAXIMUM TOTAL LOAD | 250W |
MAXIMUM LOAD FOR EACH MOTOR | 150W |
MAXIMUM LOAD ON ACCESSORIES | 7W |
PROTECTION FUSE | 2,5 A |
