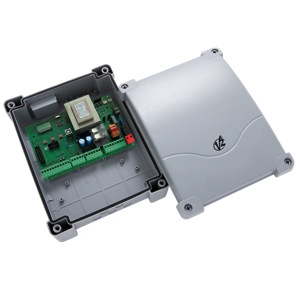

V2 City1-evo PLUS Ref: 12G041 control unit for swing gates and sliding gates.
- Programming achieved using 3 program buttons and display
- 230V power supply for 2 single-phase motors equipped with ENCODER
- Plug-in adaptor for modular radio receiver MR2
- Start, pedestrian start and stop controls from transmitter
- Safety device test before any opening
- 230V flashing light output (use flashing lights with intermittence)
- Self-learning operating time function
- Obstacle detection function
- Operational cycle counter, with programmable maintenance reminders
Leaf slow-down function in limit switch area to prevent noisy closures and rebounds - Slow start function during opening (programmable time)
- Monitoring of input status using the display
- ADI 2.0 connector for the advanced management of the ADI devices
- USB connector to connect the control unit to a PC and manage through software the programming of the unit, the firmware updates and the operation diagnostics
- Connector for the LOW ENERGY module that allows saving electrical energy: when the gate is standing the LOW ENERGY module deactivates the display, the photocells and all the devices power supplied by a terminal box
Additional information
BRAND | V2 |
---|---|
REFERENCE | City 1 Evo Plus |
HEIGHT | 295 |
DEPTH | 100 |
WIDTH | 230 |
CASE COLOUR | GREY |
BATTERY/POWER | 230V / 50Hz |
WEIGHT | 1600 gr |
MAXIMUM LOAD ON ACCESSORIES | 10W |
MAXIMUM MOTOR LOAD | 2 x 700W |
PROTECTION (IP) | 55 |
