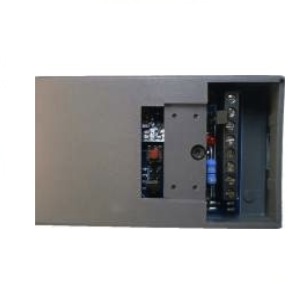

Presentation of the DOITRAND MR1E Receiver

Note: This product is dated before the year 2018.

Note #2: This device should not be confused with the PRASTEL receiver. It is not functional with PRASTEL and CASIT remote controls, with gray buttons.

If you want to manage your automation or motorized systems while combining simplicity and efficiency, look no further. The DOITRAND MR1E Receiver is the one you need.

Thanks to the MR1E DOITRAND receiver, you will be able to manage your motorizations and automations with complete comfort. It operates on a frequency of 433.920 MHz. This parameter provides your system with an ideal range. Moreover, the DOITRAND MR1E Receiver is powered by 12 V/24 V (AC/DC). Additionally, it integrates the functions of a receiver and standard code decoders as well as Rolling Code, also known in French as code tournant, which provides you with enhanced security.

Can record a wide variety of codes!

Among its advantages, it is capable of recording no less than 200 different codes! Furthermore, programming this product is incredibly easy. Indeed, the coding of the MR1E DOITRAND receiver is done through what is called self-learning. Simpler than usual, this means you won’t even need a professional to set up your system. Also, this product has the ability to have one (1) channel.

Small size, great utility

With a dark appearance, it will ensure great discretion and will not stand out in your home environment. This receiver has a non-waterproof casing. Its small size will facilitate the installation of the DOITRAND MR1E Receiver. In fact, it has a height of 103 mm and a width of 57 mm. Finally, its thickness is 24 mm. Additionally, its operating temperature ranges from -20°C to 55°C. Thus, this product is capable of adapting to a multitude of environments.

Compatibility of the DOITRAND MR1E Receiver

The manufacturer recommends that this receiver is only functional with remote controls dated before the year 2018. Here are some models:

• the DOITRAND MPSTF2E_RJ model with yellow buttons
• the DOITRAND MPSTF2RE product, with red buttons
• the DOITRAND TS2DE system
• the DOITRAND TS4DE transmitter
• the DOITRAND TR2DE product
• the DOITRAND TR4DE remote control

Installation of the DOITRAND MR1E Receiver

To learn more about the installation of this product, please consult the user manual for this product, in PDF version here.

How to program your receiver? (in 6 steps)

1. First, properly power the receiver.
2. Then, press the P1 button. A red LED should light up. This is a signal indicating that programming is in progress.
3. Next, perform a transmission by pressing any button on your remote control.
4. The code is then stored. During the introduction, the LED blinks. At the end of the introduction, the LED returns to a steady state. This signals that it is possible to insert a new code.
5. Then, memorize all transmitters by performing a transmission with each of them.
6. At the end of the operation, press the P1 button again to exit the procedure. The LED turns off. Exiting the procedure will automatically occur after 10 seconds from the last memorization. Note that even when the power to the receiver is cut, the codes remain in memory.

How to erase all codes on my receiver? (in 3 steps)

1. To start, hold down the P1 button until the red LED starts blinking.
2. Then, press the P1 button again within 6 seconds to confirm the deletion.
3. Finally, confirmation is indicated by the LED blinking at a higher frequency.

FAQ of the DOITRAND MR1E Receiver

Can you tell me more about the DOITRAND brand?

Founded in 1977, the French company Doitrand specializes in the design of motorization systems. Whether it is motorized doors, fences, automatic barriers, and gate remote controls, this company promotes practicality and enhances the comfort of daily life. The brand’s products are mainly used by customers living in co-ownership or in housing estates.

Where to find other products from the DOITRAND brand?

You can find a multitude of products from the French brand on the Alloremotecontrol website, by clicking here.
