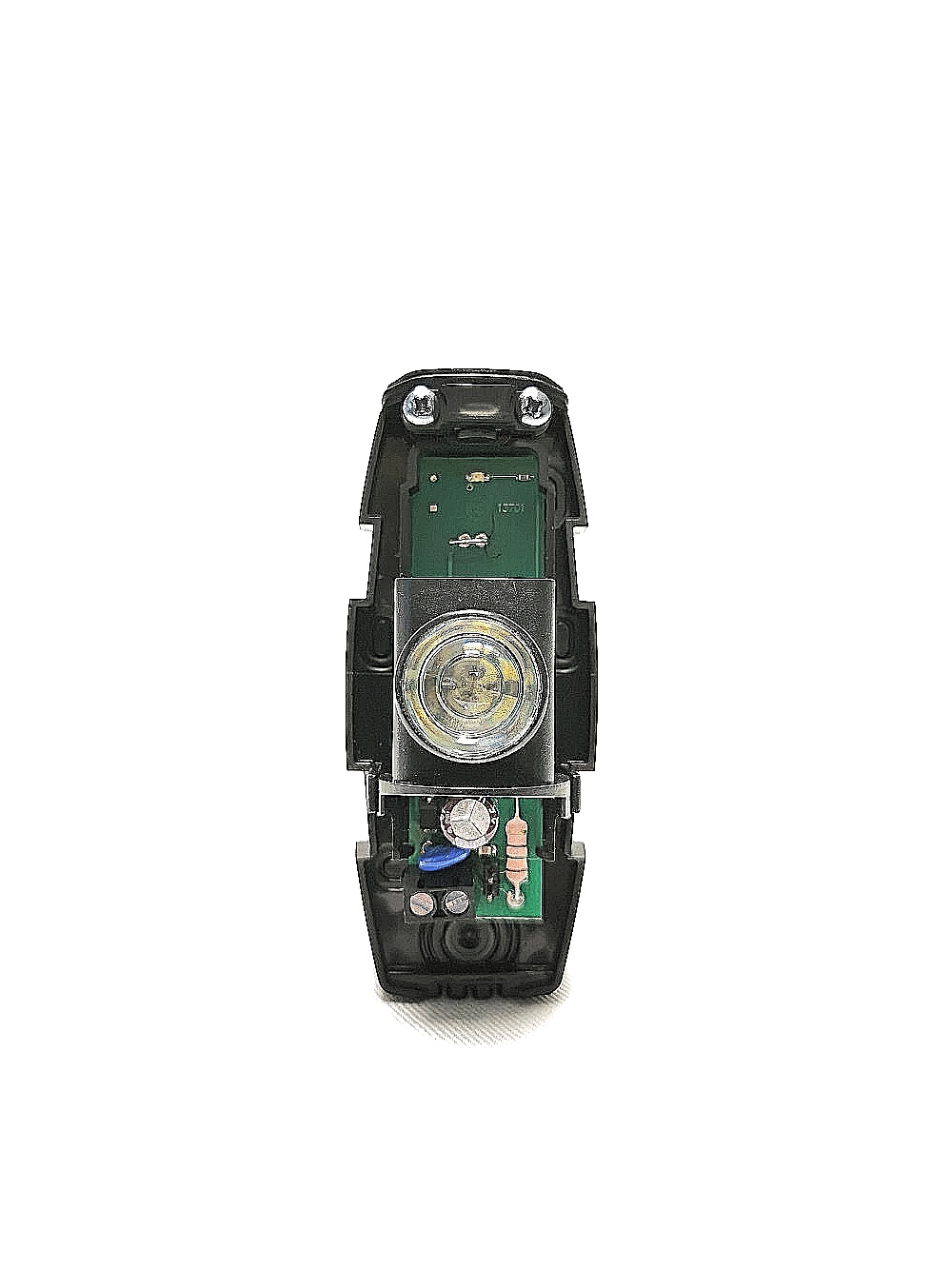

Presentation of CARDIN VEDO180 photocells ATTENTION: This product may also exist with the TELCOMA brand under another reference. With CARDIN VEDO180 photocells, benefit from qualitative, ergonomic and reduced-size photocells. Indeed, with their height of 37 mm, their length of 102 mm and their width of 44 mm, their installation should not pose any major problems for you. A pair with a range of 25 m Powered at 12 or 24 V in both direct current and alternating current, these CARDIN VEDO180 photocells have a range of 25 m. The manufacturer specifies – however – that the range is closely linked to external ambient conditions. In the presence of fog, dust or rain, for example, the range of the device can be reduced by 70%. In terms of safety, these photocells are classified with the IP 44 protection index. That is to say, they are protected against solid bodies greater than 1 mm and against liquid splashes in all directions. An adjustable infrared beam Located inside the photocells, an infrared beam is capable of detecting the slightest obstacle within the range of the device. How it works ? Between the transmitting cell and the receiving cell, there is an infrared beam which is always received. As soon as it is no longer there, this means that an obstacle stands in front of your engine. At this time, the CARDIN VEDO180 photocells are forced to influence your engine to avoid a shock. If it is a classic operation, the infrared beam incorporated in the CARDIN VEDO180 photocells is different from the others. For example, it is possible to adjust it by more than 180° in the horizontal direction. This is so as to be able to position this set of photocells in places that do not allow the operation of ordinary photocells. The info in: In CARDIN VEDO180 photocells, a self-centering lens corrects possible errors of a few degrees, also in the vertical direction. More than ever at Cardin, safety is a priority! Installation of CARDIN VEDO180 photocells For details of the illustrations and for other manipulations, we invite you to consult the instructions for this product on the Allo Remotecontrol website by clicking here To install your device, you must: Firstly, remove the cover of the photocells using a screwdriver (as shown in fig.3 of the installation manual). Then, position the transmitter and receiver in the same axis and fix the plastic base with at least 2 screws in the fixing holes (detail 4 Fig. 1). Then, make the electrical connections on the terminal blocks following the indications in Figure 1 Afterwards, check the exact power supply using the jumper (detail 1 Fig. 1). The contact of the receiver photocell when it is powered and aligned with the transmitter is normally closed (NC). If you wish to have the contact normally open (NO), remove the electronics from the plastic support and cut track A then carry out soldering B as shown in Figure 4. NOTE: To ensure proper operation of the photocell, it is Avoid installing the receiver in the immediate vicinity of lighting projectors or Triac electronic controls or other sources of electrical interference. CARDIN VEDO180 photocells FAQ What are the key characteristics of these photocells? These photocells have a height of 37 mm, a length of 102 mm and a width of 44 mm. They are powered at 12 or 24 V. This is both direct current and alternating current. Their range is 25 m. In addition, they are classified with the IP 44 protection index. Where can I find other CARDIN brand products? You can find other CARDIN brand products on Allo Remote Control by clicking on the link here Why buy this product on Allo Remote Control? First, know that your satisfaction is the priority. We will handle your product with great care. Then, your order is shipped the same day. Then the 1 year warranty is offered (possible extension up to 2 years – see CGV) Finally, telephone assistance (08 99 25 30 57) or by email (assistance@alloremotecontrol.com) available 5 days a week
