Description

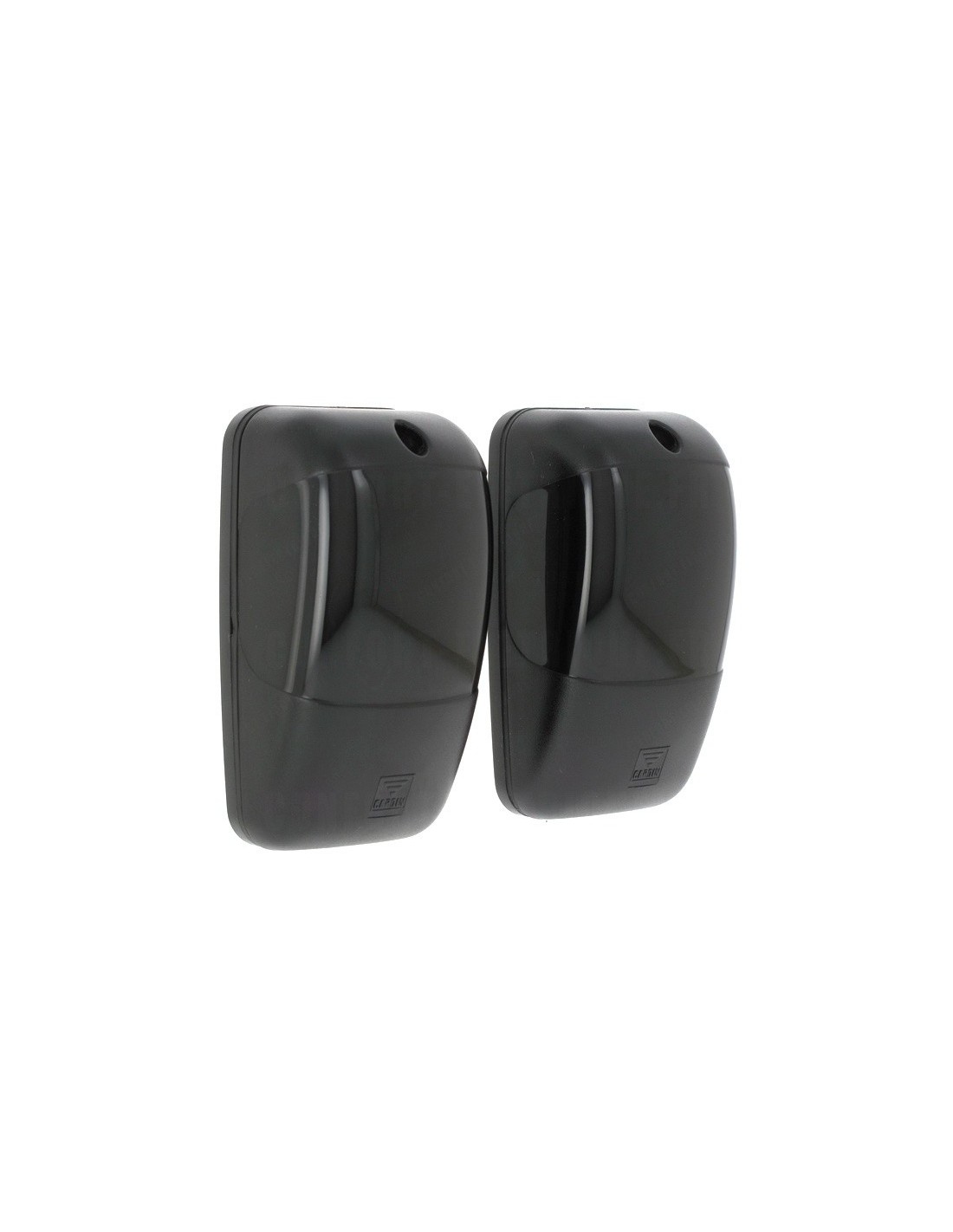

Thanks to these CARDIN CDR999 infrared photocells, you can avoid impacts against your entrance gate, your garage or your motors by placing the transmitter and receiver cell opposite each other.
Presentation of CARDIN CDR999 photocells Do you want to secure your home against shocks? Don’t hesitate any longer and acquire CARDIN CDR999 photocells. Thanks to these CARDIN CDR999 infrared photocells, you can avoid impacts against your entrance gate, your garage or your motors by placing the transmitter and receiver cell opposite each other. For all climatic conditions To secure your home and prevent your device from shock, CARDIN CDR999 photocells have a range of 10 meters, whatever the surrounding climatic conditions. Whether it’s raining, windy, foggy or dusty, you will be protected from obstacles in the path of your motorization. The intervention time of these photocells is estimated at 30 ms according to the manufacturer. Finally, these photocells are powered by 12-24 V (AC/DC). Large radius of action Mounted on an adjustable pivot, CARDIN CDR999 photocells are adjustable horizontally with a rotation of 90° and vertically by rotation of /-30° compared to the standard position. By choosing CARDIN CDR999 photocells, you are assured of having a greater action radius and avoiding more potential shocks. In addition, thanks to its multiplex system, you will be able to connect up to three pairs of photocells. How do photocells work? The action of CARDIN CDR999 photocells is possible thanks to four distinct steps, as follows: When the photocells are installed, the emitting cell sends an infrared light beam to the receiving cell, at all times. When the transmitter beam is no longer received by the receiver cell, this indicates that an obstacle is located across the closure of the device. Then, the receiving cell sends a signal to your engine. Finally, the system stops and blocks the closing of your device, so that you remove the obstacle in its path. For your comfort and safety, these CARDIN CDR999 photocells are the accessory you need. Resistant photocells CARDIN CDR 999 photocells have an IP 55 protection rating. This indicates that they are protected: Against dust Against jets of water from all directions with a lance They have a waterproof and shockproof casing made of plastic. Design of CARDIN CDR999 photocells Rectangular, these photocells have a dimension of 90 mm in length, 60 mm in width and 39 mm in thickness. Black in color, these photocells will camouflage themselves in your environment thanks to their great discretion. Installation of CARDIN CDR999 photocells Note: In the event of an installation comprising several devices, it is recommended to set up a multiplexed system, in order to avoid the risk of interference between the different pairs of photoelectric cells. To install your photocells and to benefit from the illustrations helping you to put them in place, we invite you to consult the instructions for use on the Allo Remotecontrol website by clicking here FAQ for CARDIN CDR999 photocells What are the key characteristics of these photocells? These photocells have a dimension of 90 mm in length, 60 mm in width and 39 mm in thickness. Black in color, they have a range of 10 m. Finally, these photocells are powered by 12-24 V (AC/DC). They have an IP55 protection rating which indicates that they are protected against dust and jets of water from all directions.
