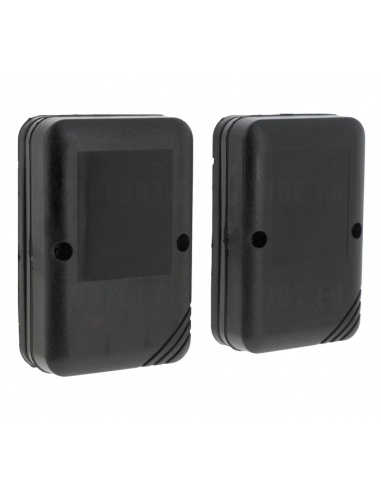

Presentation of CARDIN CDR861 photocells CARDIN is an Italian brand created in 1974, specializing in the field of home automation. With a credo based on ergonomics, efficiency and performance, the firm designs various products which are sold all over the world. To protect your engine, don’t wait any longer and acquire CARDIN CDR861 photocells. For the control of vehicles or people and the safety of your passage, CARDIN CDR861 photocells are ideal. Indeed, if between the transmitting cell and the receiving cell, the infrared beam is not received, this indicates that an obstacle stands in front of your engine. CARDIN CDR861 photocells will then do everything possible to avoid any damage to your engine. Usable in all weather Powered with a current of 12-24 V (ac/dc), the use of this device is effective over 10 m, particularly for up-and-over doors. And thanks to the infrared rays that compose them, they can detect any obstacle (within their radius of action) even if climatic conditions change. Thick fog, rain or dust, be safe whatever the weather! In addition, they have the ability to operate in several temperatures. Cold or hot, CARDIN CDR861 photocells have an operating temperature between -10°C and 55°C. Guaranteed protection Designed by CARDIN engineers, CARDIN CDR861 photocells, placed in a waterproof shockproof plastic box, are designed to endure several climatic conditions and to come into contact with various objects or living beings. To combat these, CARDIN CDR861 photocells have undergone several batteries of tests in order to be as resistant as possible. Thus, they are classified with a degree of protection IP54. This means that they are protected against dust and liquid splashes in all directions. An installation that sticks to the surface CARDIN CDR861 photocells are installed in a box, in order to fix them to the wall. Their special rubber base even allows grip on different surfaces, even irregular ones. Contents of CARDIN CDR861 photocells When you purchase these photocells, you acquire the following products: A projector in a box A receiver in a box Screws Gaskets Installation of CARDIN CDR861 photocells To install this product, please follow the following instructions: First, choose the fixing points according to the necessity of the installation. Then, plan the route of the cables on the structure so that they reach the fixing points. Then, using the drilling template found inside the packaging, trace the fixing points. Next, release the circuit from the base. Fix the base on the wall, pass the connection cables through the hole provided for this purpose. Replace the circuit on the base and make the connections (fig. 3). Finally, once the installation is complete, check that it is effective. Conversely, if the structure is irregular, it is better to check the electrical operation before permanently fixing the devices. First connect and secure the projector, then connect the receiver and then proceed as follows. Control and adjustment of CARDIN CDR861 photocells: Note: When the projector and receiver are turned on, the projector indicator light remains on permanently; the receiver indicator goes out when the photocell is centered (system activated) and comes on when the photocell is not centered. First, introduce the points of an ordinary tester (maximum of the 2 Vdc scale) into the special test areas (test points) respecting the exact polarity as indicated on the marks on the printed circuit. Then, take the reading on the tester considering as optimal a deviation of the signal equal to 0.4 V. In the case where a greater deviation is measured, attenuate the signal by acting on the relative trimmer of the receiver until that the signal deviation is reported to the optimal value. For more information on this product, we invite you to consult the PDF instructions for it on the Allo Remotecontrol website by clicking here FAQ for CARDIN CDR861 photocells Where can I find other CARDIN brand products? You can find other CARDIN brand products on Allo Remote Control by clicking on the link here Why buy this product on Allo Remote Control? First, know that your satisfaction is the priority. We will handle your product with great care. Then, your order is shipped the same day. Then the 1 year warranty is offered (possible extension up to 2 years – see CGV) Finally, telephone assistance (08 99 25 30 57) or by email (assistance@alloremotecontrol.com) available 5 days a week
