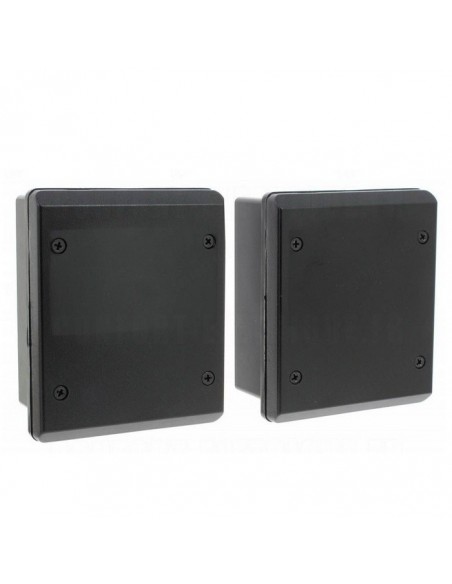

Presentation of CARDIN CDR841I00 photocells With CARDIN CDR841I00 recessed photocells, be sure to benefit from a device providing you with very high security. For your automatic gate, your automatic garage door, or your lifting barriers, these photocells, powered by 12/24 V (AC/DC), will allow you to avoid damage to your motorization. How ? Very simple operation Using the infrared technology of the CARDIN CDR841I00, your motor systems will be protected in all cases and in just 4 steps. First, the transmitter cell sends an infrared light beam to the receiver at all times. Then, when this beam is no longer received by the receiving cell, this indicates that an obstacle is located across the closure of your gate. Then, subsequently, the receiving cell sends a signal to your engine. Finally, the system will stop and block the closing of the gate until you remove the obstacle in the way. A range not impacted by weather conditions The range of photocells differs depending on the position of your installation. In fact, the range of photocells is: 30 m for installations inside buildings. 15 m for outdoor installations, under all conditions, even in the presence of thick fog, rain or dust Robust photocells The CARDIN CDR841I00 photocells will surprise you with their robustness. Placed in a waterproof plastic housing, the receiving and transmitting cells are classified with the IP 55 protection index. That is to say, they are protected against jets of water from all directions with a lance but also dust. So don’t worry about damage to this accessory! In addition, CARDIN CDR841I00 photocells have adjustable cells. A moving optical head But that’s not all! The optical head – mounted on a self-locking swivel pivot – can be configured as you wish. Horizontally by rotating 90° and vertically by rotating + or – 30° compared to the standard position, protect yourself as much as possible using these photocells. Contents of CARDIN CDR841I00 photocells When you get these photocells, you also get the following products: 1 spotlight in the base box 1 Receiver in the base box Two boxes for recessing 2 Closing glass slats for recessed photocells 2 Plates for quick fixing to the wall Screws Gaskets Installation of CARDIN CDR841I00 photocells For more information on the installation of CARDIN CDR841I00 photocells, please consult the product instructions in PDF by clicking here How to install recessed photocells : NOTE: Recessed installation is possible on all types of structures. First, choose the mounting points according to the installation requirements Secondly, plan the mounting spaces according to the dimensions of the boxes (detail 1, fig. 5) Then, plan the route of the cables on the structure up to the mounting points Then, pass the cables through the boxes, insert them into the wall and fix them in the most appropriate way Afterwards, pass through the special hole in the base box the cables to connections Once the device is connected, make the coupling between the flush-mounted box and the base box, pressing until you obtain the appropriate coupling between the reference pins and the corresponding holes (detail 1-2, fig 5) Insert the seal into the appropriate space in the recessed box and proceed (after making the necessary adjustments) to fixing the glass slat (detail 4-5, fig. 5) Photocell FAQ CARDIN CDR841I00 Where can I find other CARDIN brand products? You can find other CARDIN brand products on Allo Remote Control by clicking on the link here Why buy this product on Allo Remote Control? First, know that your satisfaction is the priority. We will handle your product with great care. Then, your order is shipped the same day. Then the 1 year warranty is offered (possible extension up to 2 years – see CGV) Finally, telephone assistance (08 99 25 30 57) or by email (assistance@alloremotecontrol.com) available 5 days a week
