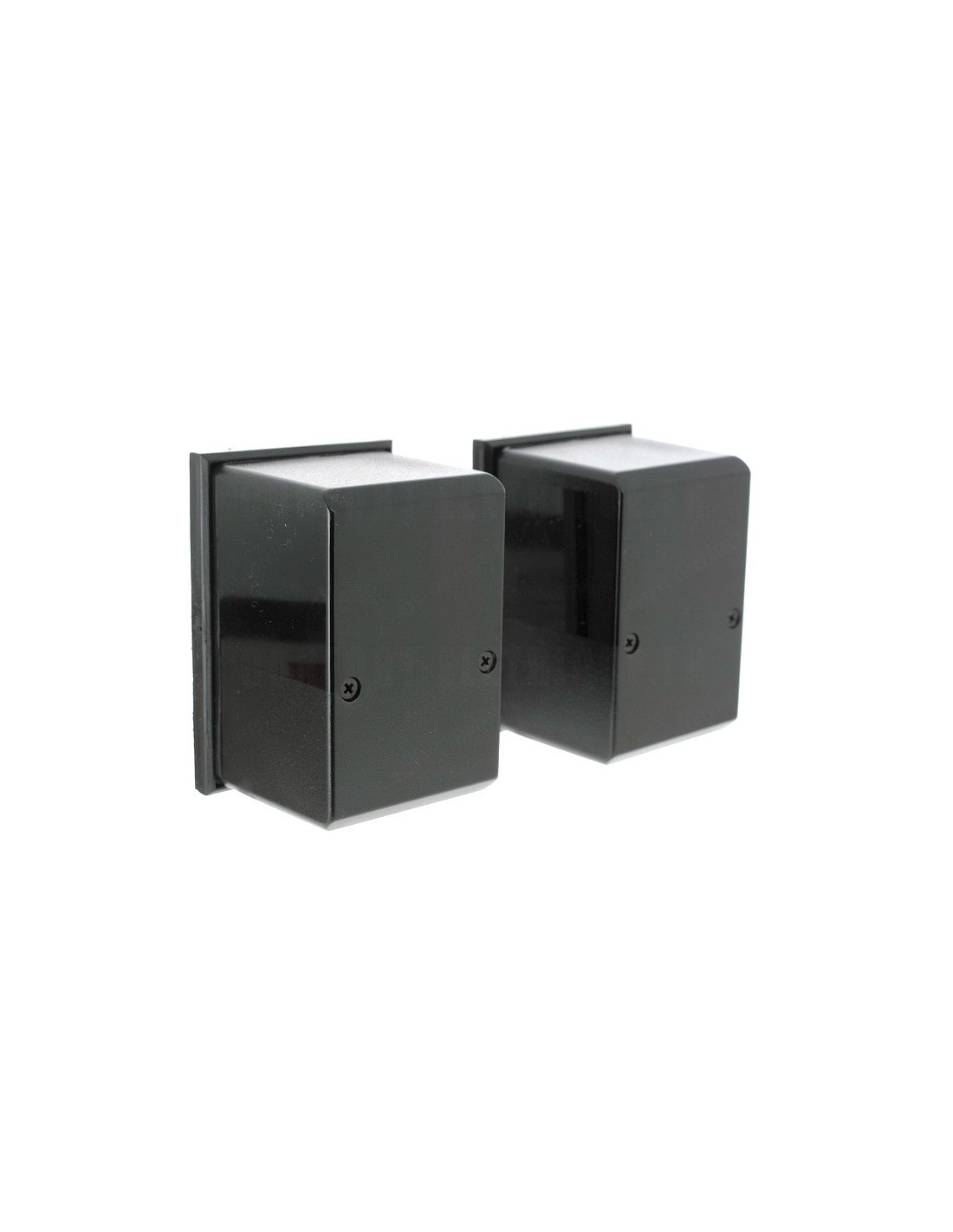

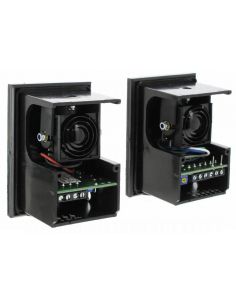

Presentation of CARDIN CDR841E00 photocells Imagine being able to prevent damage to your engine? Imagine being able to control your engine depending on the environment? Did you dream of it? The manufacturer CARDIN has done this with the CARDIN CDR841E00 photocells. A range of 15 meters You will soon no longer be able to do without it. Indeed, photocells are a formidable accessory to protect your gate and your motorization systems. In the case of CARDIN CDR841E00 photocells, their infrared beam has a range of 15 meters. This means that within a radius less than this, the CARDIN CDR841E00 are capable of detecting any obstacle in their path. In addition, their optical head mounted on an adjustable pivot is self-locking. It is adjustable horizontally by rotating 90° and vertically by rotating ±30° relative to the standard position. Enough to offer you even greater reach to ensure greater efficiency! How photocells work in the developer How is this possible? Quite simply thanks to four distinct steps, as follows: The emitting cell sends an infrared light beam to the receiver at any time. When this beam is no longer received by the receiving cell, this indicates that an obstacle is located across the closure of your gate. Subsequently, the receiving cell then sends a signal to your engine. Finally, the system will stop and block the closing of the gate until you remove the obstacle in the way. Simplified installation To be installed on a surface and powered by 12/24 V (AC-DC), CARDIN CDR841E00 photocells will amaze you with their simplified installation. This is also helped by the unimpressive size of the latter. In fact, they measure 90 mm in height and 60 mm in width. Real solidity A real workhorse on the part of CARDIN engineers, the CARDIN CDR841E00 photocell set is placed under a waterproof plastic housing. With an IP55 protection rating, it is protected against jets of water in all directions and against dust. Installation of CARDIN CDR841E00 photocells NOTE: Installation of this product is possible on all types of structures. How to install the CARDIN CDR841E00 photocell set (in eight steps): First, choose the surface mounting points according to the installation needs. Then, plan the route of the cables on the structure to the fixing points. Then, fix the plates for quick fixing in the points provided. Pass the cables for the connections through the appropriate hole in the base box. Then, remove the plug slightly and make the connections. When the device is connected, insert the gasket and snap between the quick-release base and the base box. The tightness of the coupling is guaranteed. Then insert the seal into the appropriate space in the base box and proceed (after making the appropriate adjustments) to fixing the glass cover. Finally, if necessary, plan the installation of the protective cover, supplied on request. For more information on the installation of this product, we invite you to consult the PDF instructions for this product on Allo Remote Control by clicking on the link here. CARDIN CDR841E00 photocell FAQ Where can I find other CARDIN brand products? You can find other CARDIN brand products on Allo Remote Control by clicking on the link here Why buy this product on Allo Remote Control? First, know that your satisfaction is the priority. We will handle your product with great care. Then, your order is shipped the same day. Then the 1 year warranty is offered (possible extension up to 2 years – see CGV) Finally, telephone assistance (08 99 25 30 57) or by email (assistance@alloremotecontrol.com) available 5 days a week
