Presentation of the DOITRAND TX4DE Remote Control

DOITRAND offers a new reference on Alloremotecontrol, the remote control DOITRAND TX4DE which is usable for controlling garage doors. The French company, backed by its multiple qualified staff members, has indeed created a successor to the DOITRAND TS2DE V.2.

A transmitter with a very good radio signal

Coded on a frequency of 433 MHz – which gives it excellent signal range – this remote control features simplified programming. This is made possible thanks to the mini-switches located on the back of this transmitter, commonly referred to as “dip-switches” (see dedicated paragraph on programming below).

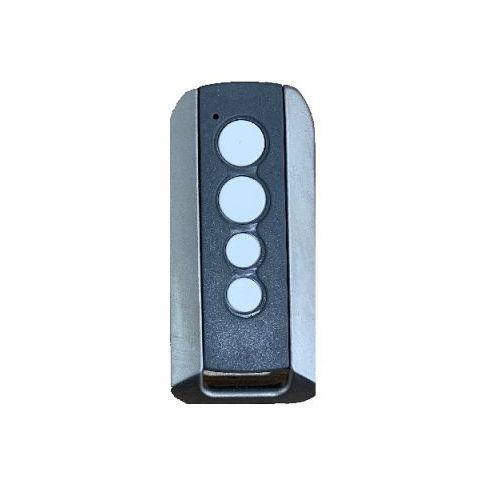

With the DOITRAND TX4DE model, powered by a 3 V battery, type CR2032, you can control up to four different automations or assign four different commands. With the four white buttons adorning this transmitter, opening and closing your garage door will be child’s play.

Maximum ergonomics

With its height of 65 mm and length of 30 mm, you will have no excuse not to have your favorite remote control with you everywhere. Additionally, DOITRAND has thought of you by leaving a small space on the lower part, perfect for slipping in a keyring. This way, the risks of misplacement are minimal. Also, to indicate that an action for your garage door has been successfully performed, DOITRAND has included a red LED that flashes on the upper left side. You will therefore not need to press the button again to ensure that the opening or closing action has been completed.

A refined item

Elegance has also been maximized for this DOITRAND TX4DE. The steel-colored edges discreetly contrast with the center, which is gray. Additionally, the white buttons are easily identifiable and become more discreet in size when you look at those located in the lower part. They can be used with a light press and can even be operated while wearing gloves. You will understand, this device is 100% practical!

Compatibility of the DOITRAND TX4DE Remote Control

The manufacturer informs that this product is compatible:

• with DOITRAND receivers made since 2018, as the registration of the remote control may be possible on the radio receiver.
• but also with installations from before 2018, when using the mini-switches (also called Dip-switches) on the back of the remote control.

Note: In the case of DOITRAND receivers since 2018, it is possible that the installer will need to perform additional manipulations to configure it.

Programming the DOITRAND TX4DE Remote Control

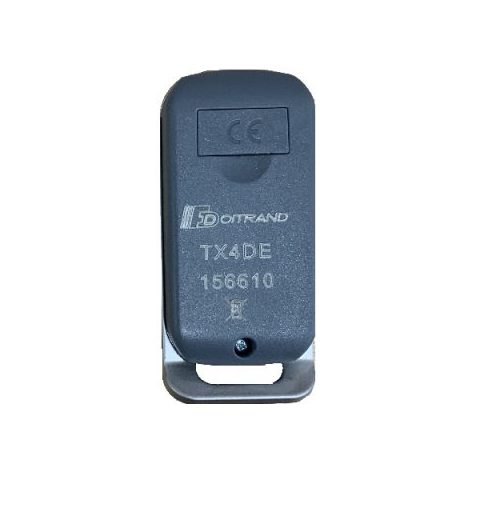

According to the information provided by the manufacturer, this product is programmable thanks to the switches located on its back. To do this:

1. Open the back cover of your remote control (as shown in figure 1 of the manual available here)
2. Then, move the DP1 sliders (see figure 2), according to the code assigned by the administrative members of the housing collective.

Other manipulations on this remote control are possible. To learn more, please click on the manual here.

Also note that this product:

• is compatible with DOITRAND receivers from 2018. However, the remote control must be registered on the radio receiver.
• is also compatible with installations from before 2018. To do this, position the mini-switches, present on the back of the remote control, as they are on your other remote control.

FAQ for the DOITRAND TX4DE Remote Control

Can you tell me more about the DOITRAND brand?

Founded in 1977, the French company DOITRAND specializes in the design of motorization systems. Moreover, whether it is motorized doors, fences, automatic barriers, or gate remote controls, this company promotes practicality and the improvement of daily life comfort. Finally, the brand’s products are mainly used by customers living in co-ownership or in housing estates.

Where can I find other products from the DOITRAND brand?

You can find a multitude of products from the French brand on the Alloremotecontrol website, by clicking here.

Why buy this product on Alloremotecontrol?

• First, your order is shipped the same day
• Then a 1-year warranty is offered (extension possible up to 2 years – see T&Cs)
• Finally, telephone assistance (08 99 25 30 57) or by email ([email protected]) is available 5 days a week
