The DITEC PWR25H Operator is an automation system, powered by 24 V (DC). This is a motor that can support an (individual) leaf weighing a maximum of 400 kg or 2.5 m. Please refer to the product instructions below for more information.

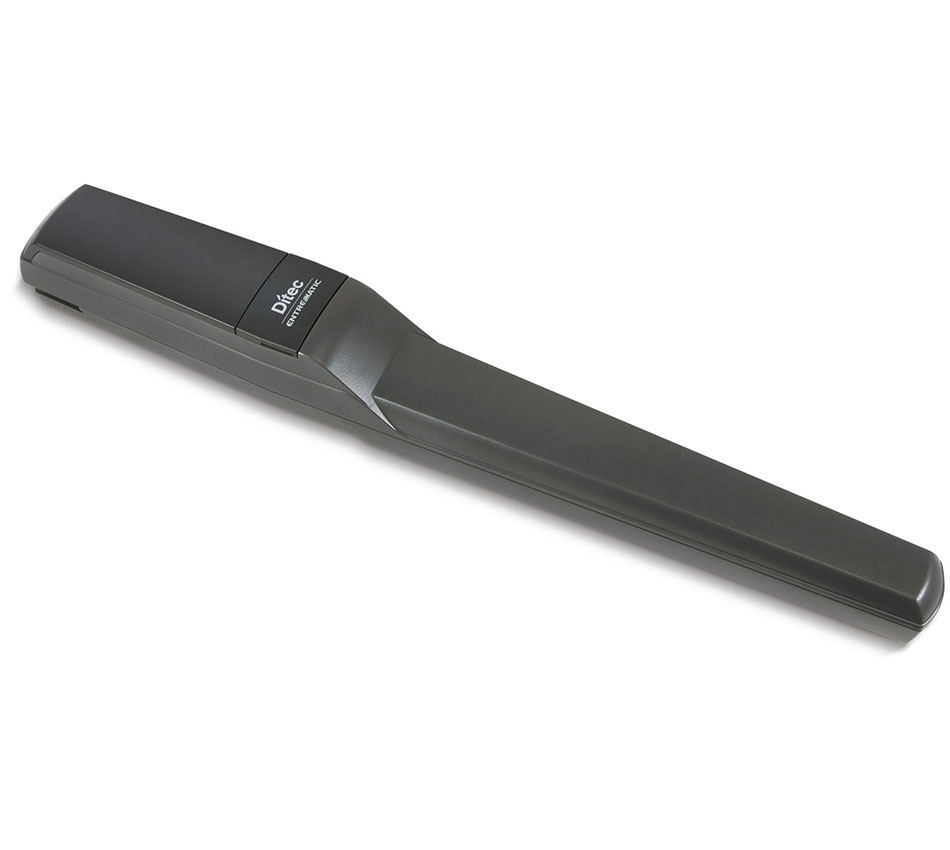

Presentation of the DITEC PWR25H Operator The DITEC PWR25H Operator is an electromechanical and self-locking cylinder. It is a motor powered by 24 V (DC) which is used for intensive use. Thus, this operator can carry out a maximum of 80 cycles / per day (30 consecutive cycles at 20°C according to the manufacturer). It also has a maximum absorption of 5 amps, a thrust of 2,000 Newtons and in addition, an estimated maximum stroke of 350 mm. For trouble-free installation, the DITEC PWR25H is supplied with mounting brackets, plastic protections and mechanical limit switches. Also note that the operating temperature of this system is between -20°C and 55°C. In addition, its degree of protection is IP44. Precision: this means that this operator is protected against solid bodies greater than 1 mm, as well as against liquid splashes. In terms of dimensions, note that this operator has a length of 820 mm, a width of 100 mm and a height of 107 mm. The weight of a single automation is 7.8 Kg. Use of the DITEC PWR25H Operator This operator can be used with: a leaf weighing a maximum of 400 kg or 2.5 m (we invite you to consult the paragraph dedicated to “limits of ‘use’ in your product manual). Installation of the DITEC PWR25H Operator You can find out more about the multiple configurations of your automation by clicking here. DITEC PWR25H Operator FAQ Can you tell me more about the DITEC ENTREMATIC brand? DITEC is a company established in several countries around the world for more than 40 years. First of all, it is recognized and renowned for offering access automation products and systems. For example, DITEC offers automation for gates, for frames, for swing shutters, for industrial doors as well as other products and systems that meet high quality requirements. Where can I find other DITEC ENTREMATIC products? Also, you can find different products from the DITEC brand on Allo Remote Control! You can click here to find out more about the items offered. Why buy this product on Allo Remote Control? First, know that your satisfaction is the priority. We will handle your product with great care. Then, your order is shipped the same day Then the 1-year warranty is offered (possible extension up to 2 years – see T&Cs) Finally, telephone assistance (08 99 25 30 57) or by email (assistance @alloremotecontrol.com) is available 5 days a week
