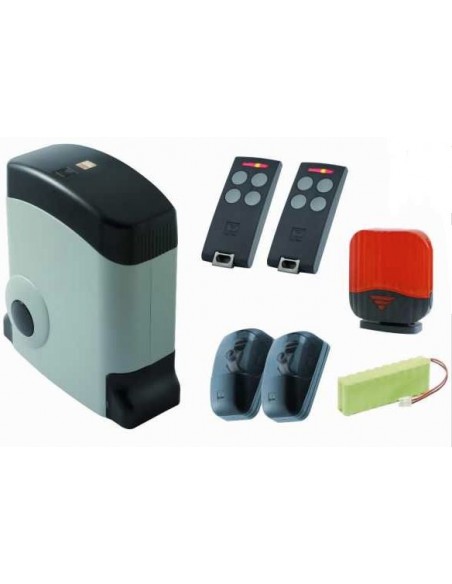

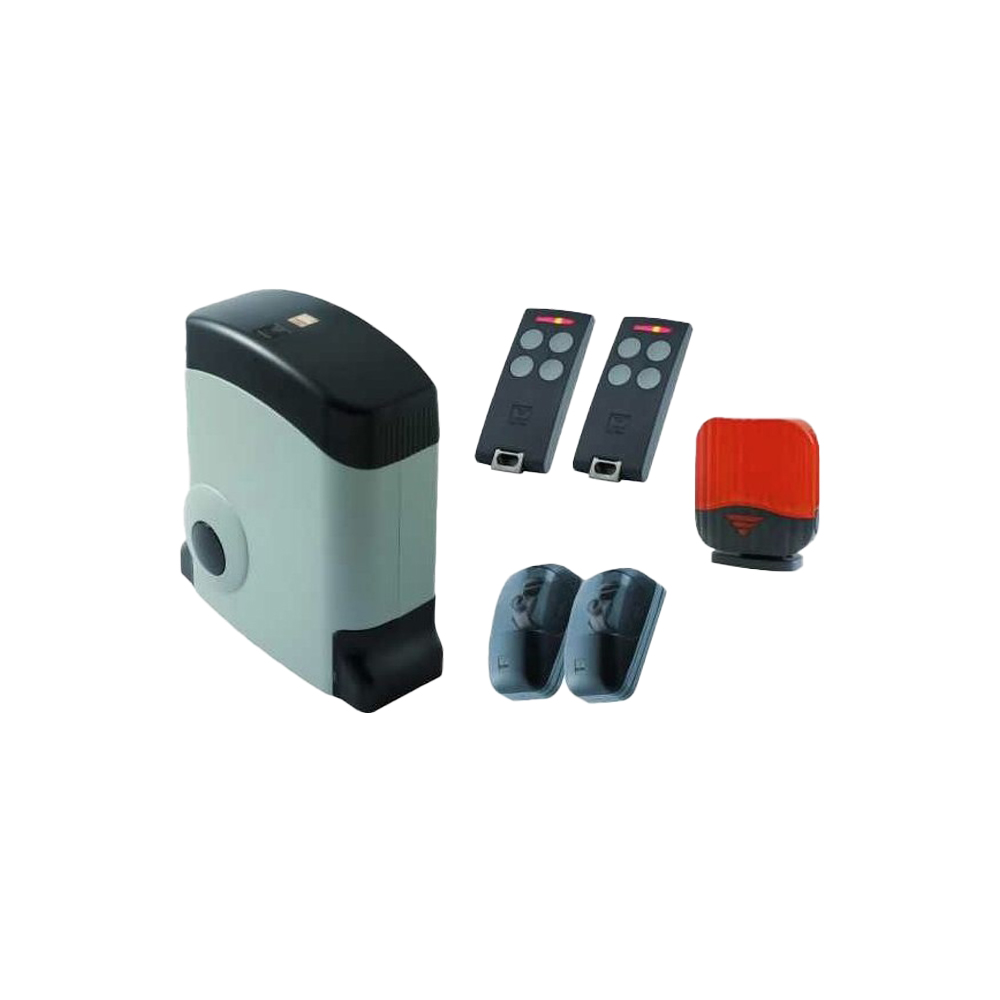

Presentation of the CARDIN KT-SL524CBX motorization kit Do you want a complete kit for your sliding gate? Don’t hesitate any longer and acquire the CARDIN KT-SL524CBX kit. With it, you will benefit from a reliable, fast and efficient device for your home. For your gates up to 500 kg The CARDIN SL524CB gear motor will be useful for controlling the position of your gate (weighing a maximum of 500 kg) or the various safety settings. This is powered by 24 V and is made up of several elements including: an electronic programmer; a 433 MHz “FM” receiver; a removable battery charger; NiMH batteries. Then, the programmer is equipped with an LCD display in six different languages which allows the visualization of the programming steps and the counting of the number of maneuvers, as well as the configuration and management of radio codes. Be protected over 10 meters! To secure your motorization, this kit includes CARDIN CDR999 photocells. With a range of 10 meters, they are capable of detecting an obstacle in the path of your engine, regardless of the weather conditions. A flashing light visible in all weather This latest generation LED flashing light, included in this CARDIN KT-SL524CBX kit, allows you to warn if work, an incident, or if the opening of your entrance is effective. Then, the orange color that makes up this light was chosen for its visibility, because it has been proven in a study that it stimulates brain activity and improves the alert level. A multi-use remote control In this kit, you get two Cardin TXQ504C4 remote controls. This allows you to control up to four automations of your choice. Programmed with the frequency of 433.92 MHz, this transmitter is powered by CR2032 batteries for long-lasting, albeit daily, use. Finally, wrapped in a shockproof plastic case, this Cardin TXQ504C4 remote control can withstand various drops. Details of the CARDIN KT-SL524CBX motorization kit Among the items you obtain by purchasing this kit, you have: First, a CARDIN SL524CB locking gear motor with integrated electronics and radio receiver Then, an emergency battery kit (battery charger) Then, a set of CARDIN CDR999 safety photocells Then, a CARDIN ICON signaling light Two CARDIN S504C4/TXQ504C4 4-function remote controls Fixing accessories Complete instructions Installation of the different elements of the CARDIN KT-SL524CBX kit Installation of the CARDIN SL524CB locking gear motor For more For information on the installation of the CARDIN SL524CB blocking gear motor, please consult the product’s PDF instructions here Programming of the CARDIN CDR999 Note: In the event of an installation comprising several devices, it is recommended to set up a multiplexed system, in order to prevent the risks of interference between the different pairs of photoelectric cells. To install your photocells and to benefit from the illustrations helping you to put them in place, we invite you to consult the user manual on the Allo Remotecontrol website by clicking here Installation of the CARDIN ICON Note #2: Installation is possible on any structure. Choose the fixing location according to the particularity of the installation, checking the good visibility of the entrance and exit signage. For more information on the installation of the CARDIN ICON traffic light, please consult the product instructions in PDF on our site by clicking here First, plan the cables at the fixing points. Next, prepare the box for fixing using the holes “A” made on the base. A hole is provided and equipped with a bulkhead for the power cable. The second hole is closed with a rubber stopper. If connecting the antenna integrated into the circuit, insert the second bulkhead provided and connect the antenna output “D” and the receiver using an RG58 coaxial cable (impedance 50 Oms) with a maximum length of 15m passing through one of the holes “A”. Then, fix the base on the piler Then, make the electrical connections to the circuit. For the 24 V connection, use only the green terminal block “B” on which the 24V signaling label must first be removed. For 230 V connection, use only the black “C” terminal block. Then, choose the operating mode, steady/flashing light using jumper “E” jumper “J1” connected, position “P1” = steady light jumper “J1” disconnected, position “P2” = flashing light Then, carry out a few maneuvers to check the efficiency of the device. As soon as the installation is complete, secure the cobocho using the screw provided. Configuring the CARDIN S504C4/TXQ504C4 4-Function Remote Controls How to program your new remote control to a receiver (in six steps): First, position yourself and your new transmitter in close proximity to your receiver. Second, on the receiver, press the MEMO button and keep it held. The LGC LED should start flashing slowly. Then, on the transmitter, press the key (channel) to memorize for the first time. On the receiver, the LGC LED starts flashing quickly. Then, still on your remote control, press the (channel) button to memorize a second time. The LGC LED on the receiver stays on steadily. After a few moments, the LGC LED goes out. Finally, release the MEMO button on the receiver. Congratulations ! Your new remote control is ready to use! For more information, we invite you to consult the product programming instructions here
