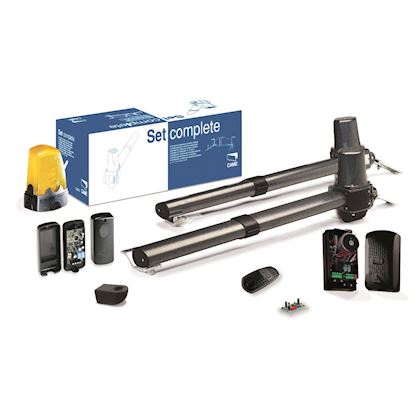

Presentation of the CAME KRONO ZF1N kit This CAME KRONO ZF1N kit is intended for residential use and will be useful for your swing gate. It is suitable for dimensions of 3 meters maximum per leaf for a leaf of 400 kg. Its structure was designed in aluminum for reliability and optimal resistance in everyday life. You therefore have in your possession an ideal kit for wrought iron gates. A programmable motorization as desired With this CAME KRONO ZF1 kit, you have a high quality control cabinet with the CAME ZF1N. This “brain” of your motorization allows you to make various adjustments to your gate and its motorization. In addition to this, in this CAME KRONO ZF1N kit you have CAME KR302 type gear motors, powered by 230 V. A remote control with two channels With this CAME KRONO ZF1N kit you have a CAME TOP 432EE remote control. Considered one of the brand’s flagship products, this transmitter allows you to control your motors remotely in a simple manner and configure up to two different channels. In addition, with this CAME KRONO ZF1N kit, you will have a CAME AF43S plug-in radio card. This receiver operates on a frequency of 433.920 MHz. Its reputation is well established, as it equips most of the Italian brand’s current installations. A kit that focuses on safety Rest assured about your safety! Inside this CAME KRONO ZF1N kit, you have included the CAME DIR10 photocells. With their infrared beam with a range of 10 m, no longer be afraid of obstacles in the path of your motorization. In addition to these photocells, you will have inside this system a CAME KLED flashing light, powered by 120 V or 230 V. This alerts you in the event that people are on the path to your gate while it is in its closing or opening phase. Detail of the CAME KRONO ZF1N kit When you open this kit, you can find the following parts: A CAME KR302D right irreversible gear motor A CAME KR302S left irreversible gear motor A complete CAME ZF1N control cabinet A remote control, two functions CAME TOP 432EE A plug-in radio card CAME AF43S A set of CAME DIR10 type photocells with a range of 10 m A CAME KLED flashing light A CAME KIAROS flashing light support Installation of the CAME KRONO ZF1N kit Installation of the CAME KR302 S and CAME KR302D gear motors To install your gear motors, we we invite you to consult the product instructions on our site by clicking here How to install my CAME ZF1N control cabinet? You can install your CAME ZF1N control cabinet by consulting the product manual, on Allo Remote Control, by clicking here To program my CAME AF43S plug-in radio card WARNING: DANGER OF ELECTRIC SHOCK. THIS PRODUCT SHOULD ONLY BE HANDLED OR INSTALLED BY QUALIFIED PERSONNEL. For more information on programming your receiver, we invite you to consult the product programming instructions on our site by clicking here. How to program my remote control to my receiver: Open the radio receiver (you have to follow the antenna wire to find it). Press the push button on the receiver. The latter is identifiable, because it says MEMO; REC; ENR; PROG on the radio board (for some receivers, simply press the MEMO button once and release it. For others, you have to hold the MEMO button). A light on the radio board lights up or flashes. Press the button on your remote control for a second then release it. Wait for the light on the radio board to go out. Test the remote control and close your radio receiver. Well done ! Your remote control is now programmed. Installation of the CAME TOP 432EE remote control Configuration using the receiver of your motorized and automated gate: You must first open the receiver of your motorized and automated gate to access the CH1 and CH2 button. You will then have to press and hold down the CH1 button on the receiver. While holding the CH1 button, you will need to press button 1 of the new CAME TOP 432EE remote control then release them simultaneously. You will then have to press the CH2 button on the receiver. While holding the CH2 button, you will need to press button 2 on the new remote control then release them simultaneously. You can now use the CAME TOP remote control. For more information, we invite you to consult the PDF instructions for this product here Installation of CAME DIR10 photocells To program your CAME DIR 10 photocells, you must: First, position them opposite each other Secure the photocells at a height of approximately 50 cm from the ground. If necessary, provide housing for the base for flush-mounting and secure it. Attach the box to the wall or base using the screws provided and any dowels. Finally, select the type of power supply and make the necessary connections. Warning: to remove the card, only force on the indicated side. Secure the cover. For more information, we invite you to consult the manufacturer’s instructions here How to install the CAME KLED flashing light For more information and details on the procedure to follow, you can consult the PDF instructions for use on our site by clicking here CAME KRONO ZF1N Kit FAQ Where can I find other CAME brand products? You can find other CAME brand products on Allo Remote Control by clicking on the link here
