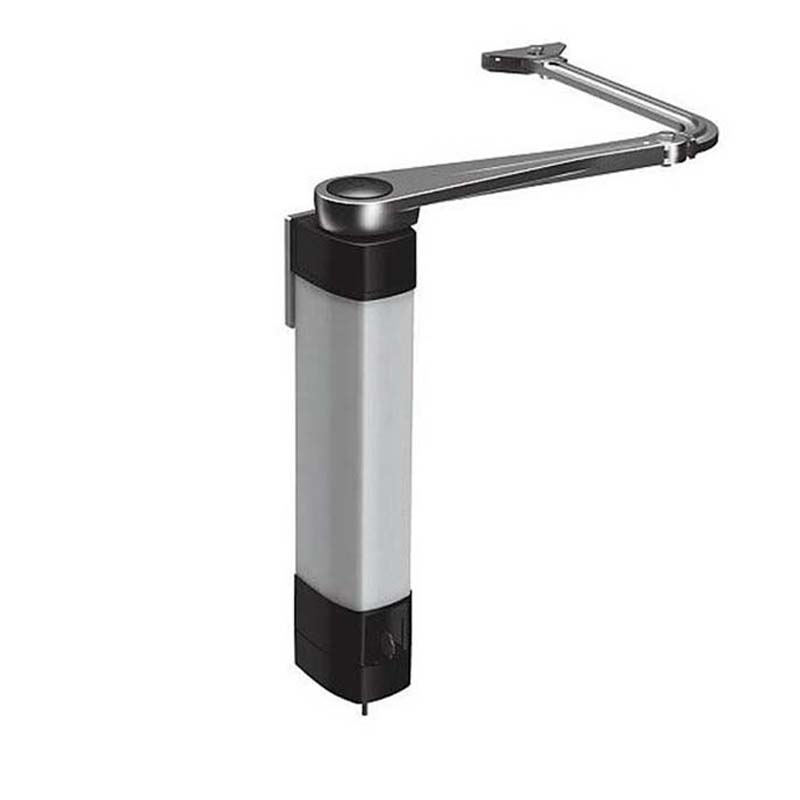

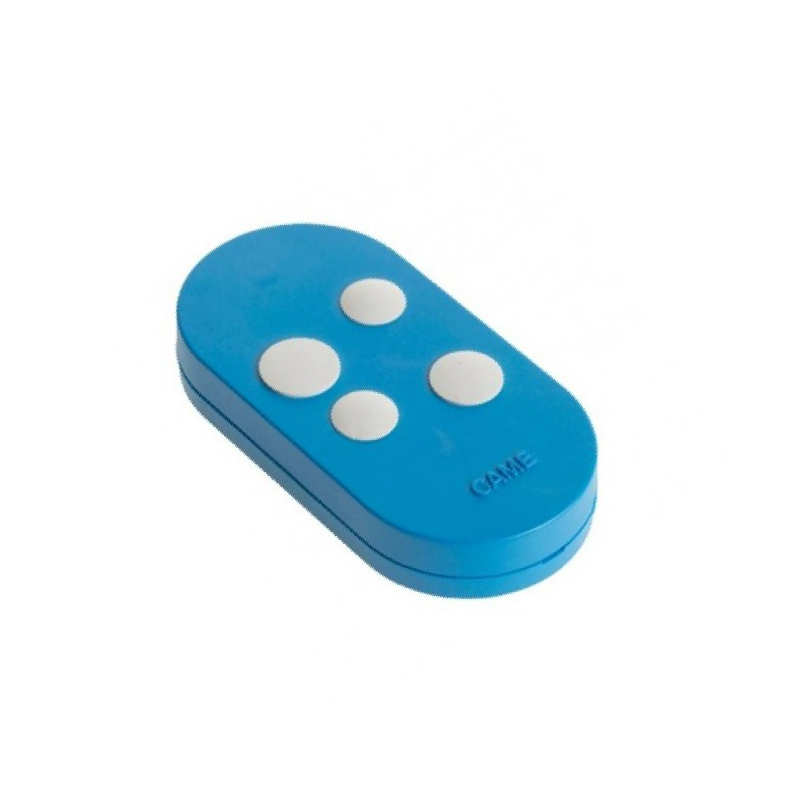

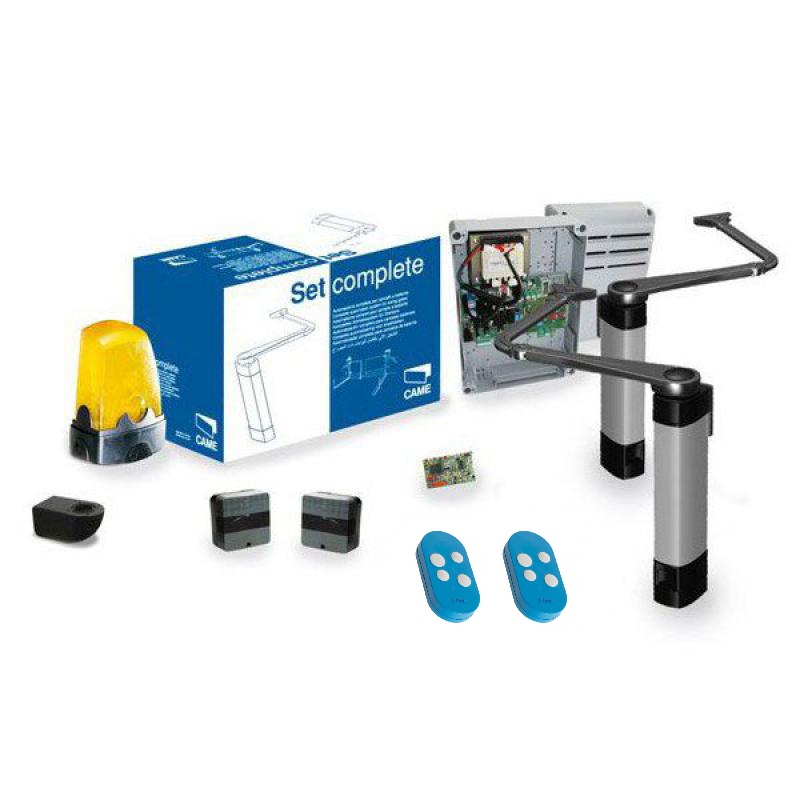

Presentation of the CAME STYLO-ME kit For your swing gates, choose the CAME STYLO-ME kit. This is a product straight from the CAME company, in Italy. It can be used for the automation of swing gates in private places and condominiums.   Thanks to this CAME STYLO-ME kit, powered by two CAME STYLO-ME gear motors, in 230 V (50/60 Hz), you have everything you need to benefit from a high-performance, but also secure, gate. With the CAME ZL92 control cabinet (powered by 24V DC 50/60Hz), you can make all the settings of your choice for your gate. A new generation remote control included In addition to these elements, you will have included in this CAME STYLO-ME kit two CAME TOPD4RBS radio transmitters. With its four programmable channels, this remote control allows you to use your motors easily and quickly. In addition, it is calibrated on a dual frequency (433.92MHz and 868.35MHz) and has a rolling code, also called a rolling code, to provide you with a higher level of security. In addition, you will have the CAME AF868 radio receiver. A receiver with a 12 V/24 V (AC/DC) power supply and functional on the frequency of 868.35 MHz. A protected kit In addition, you also have incorporated CAME DELTA-SE photocells. Using infrared rays, they have a range of 20 meters. This means that within this range, you will be protected at all times from impacts on your gate or motorization. Also, thanks to their synchronized infrared beam, CAME DELTA-SE photocells can eliminate any external interference of the signal. To complement these photocells, you have the CAME KLED24 flashing light to add even more safety! With this, you will know when an individual or an object is on the path of your motorization. In fact, a yellow flashing light will start to turn to let you know. By choosing the CAME STYLO-ME kit, you ensure that you are choosing safety. Use of the CAME STYLO-ME kit It is possible to use this kit for the following dimensions (maximum) of swing gates: 1.8m for a 100 kg leaf 1.2m for a 125 kg leaf 0.8m for a leaf of 150 kg Details of the CAME STYLO kit In your CAME STYLO kit, you obtain the following products: Two CAME STYLO-ME gear motors A control cabinet, with integrated radio decoding CAME ZL92 Two articulated CAME STYLO-BS transmission arms Two radio transmitters CAME TOPD4RBS A CAME-AF868 radio receiver A set of CAME DELTA-SE infrared photocells The CAME KLED24 flashing light A CAME KIARIOS flashing light support A nameplate The complete technical manual Installation of the CAME STYLO kit Installation of the CAME STYLO-ME gear motor For further information on the CAME STYLO-ME gear motor and its initialization, we invite you to consult the PDF instructions for this product on Allo Remotecontrol by clicking here Programming of the CAME ZL92 control cabinet Warning: Installation must be carried out by qualified and experienced personnel For more information on the possible settings within the control cabinet, we invite you to consult the manufacturer’s instructions for the corresponding control cabinet by clicking here. How to test your engine? (in five steps) Select “A 2”. Press ENTER to confirm. Select 1 to enable testing. Press ENTER to confirm. The indication ”—” will be displayed while waiting for the command. Press and hold the key with the “>” arrow and make sure that the leaf of the second motor (M2) performs an opening maneuver. (Note: if the leaf performs a closing maneuver, invert the motor phases (M2 with N2). Carry out the same procedure with the key indicated with the arrow “<” to control the leaf of the first gear motor (M1). Note : if the leaf performs a closing maneuver, invert the motor phases (M1 with N1). You can find this methodology in the manufacturer’s manual with illustrations to help you. To program your CAME TOPD4RBS remote control How to program your remote control using Using an old remote control (in four steps): Take your old and new remote controls. Move closer to your receiver (within a maximum distance of 5 m) Press the already programmed button on your old remote control for 10 seconds. Its LED should become solid. You then have 20 seconds to register the button of your choice on your new remote control by holding down on it. You can register several remote controls at the same time. Congratulations ! Your new remote control is programmed! For more information on programming your remote control, we invite you to consult the product’s PDF instructions on our site by clicking here. Installation of CAME STYLO-BS articulated arms To install your CAME STYLO-BS articulated arms, please consult the complete product instructions included in the CAME STYLO kit. Programming the CAME-AF868 Radio Receiver How to register a new self-learning remote control into this receiver: First, open the radio receiver (follow the antenna wire to locate the radio receiver). Then, press the push button, marked: MEMO, REC, ENR or PROG, on the radio card. NB: For some receivers, it is enough to press the MEMO button once and release it, for others you have to keep the MEMO button pressed. Then, a light on the radio board lights up or flashes. Then, press the button on your new remote control for 1 second. Release the button. Wait for the light on the radio card to go out. Finally, test the remote control and close the radio receiver. Congratulations ! Your remote control is ready to use. For more information, please consult the product instructions in PDF version by clicking here Installation of your CAME DELTA-SE photocells For more information on the installation of your CAME DELTA-SE photocells, we invite you to consult the instructions PDF of this product by clicking here. Fix the photocells at a height from the ground of approximately 50 cm. The photocells must be facing each other. Drill the rear side of the bases of the box 1 to pass the cables, and fix the bases using the O-rings provided. Secure the TX and RX cards using the screws provided and connect them as indicated in the diagrams in the accessory manual. To conclude, close the bases using the screw by fixing and rotating the front part up and down. Installation of the CAME KLED24 flashing light For more information and details on the procedure to follow, you can consult the PDF user manual on our site by clicking here To install this flashing light, you must: Firstly, provide the cables necessary food. Open the flashing light (A) and pierce the base from the bottom (B). Then, pass the cables coming from the cabinet through the hole. Next, attach the turn signal light base to the C-pillar using the appropriate screws and anchors. Next, connect the wires to the turn signal board. Finally, close everything. CAME STYLO-ME FAQ Where can I find other CAME brand products? You can find other CAME brand products on Allo Remote Control by clicking on the link here
