Presentation of the CAME BX-243 Kit

This CAME BX-243 kit is useful for sliding gates with a maximum weight of 300 kg and a maximum length of 8.5 m. With this complete system, you won’t have to worry about the reliability and performance of your entrance gate. Indeed, inside this CAME BX-243 kit, you have the best products from the Italian brand CAME.

A high-performance plug-in radio board

With this CAME BX-243 kit, you will receive a CAME AF43S plug-in radio board. This operates on a frequency of 433.920 MHz with a power supply of 12 V/24 V (AC/DC). It has two channels and is perfectly usable for residential use. Moreover, the CAME AF43S is easy to program thanks to mixed coding.

A quality transmitter

In addition to the radio board included in this kit, you will have a new generation CAME TOP432EE remote control. This will allow you to control your motors remotely with ease! A high-quality remote control provided with a user guide for quick and easy programming, with no additional equipment required.

Ideal protection with included photocells

Additionally, you will receive the CAME DIR10 photocells in this kit. Thanks to its ultra-efficient anti-crossing range of 10 m, you can detect obstacles in the path of your gate motorization, garage, or roller shutter. Furthermore, by trusting this product, you ensure optimal and maximum safety.

A flashing light for added security

No longer fear opening or closing your gate thanks to the CAME KLED24 flashing light. Powered by a 24 V (AC-DC) current, this signaling alerts you if, for example, people are in the path of your gate while it is in the process of closing or opening.

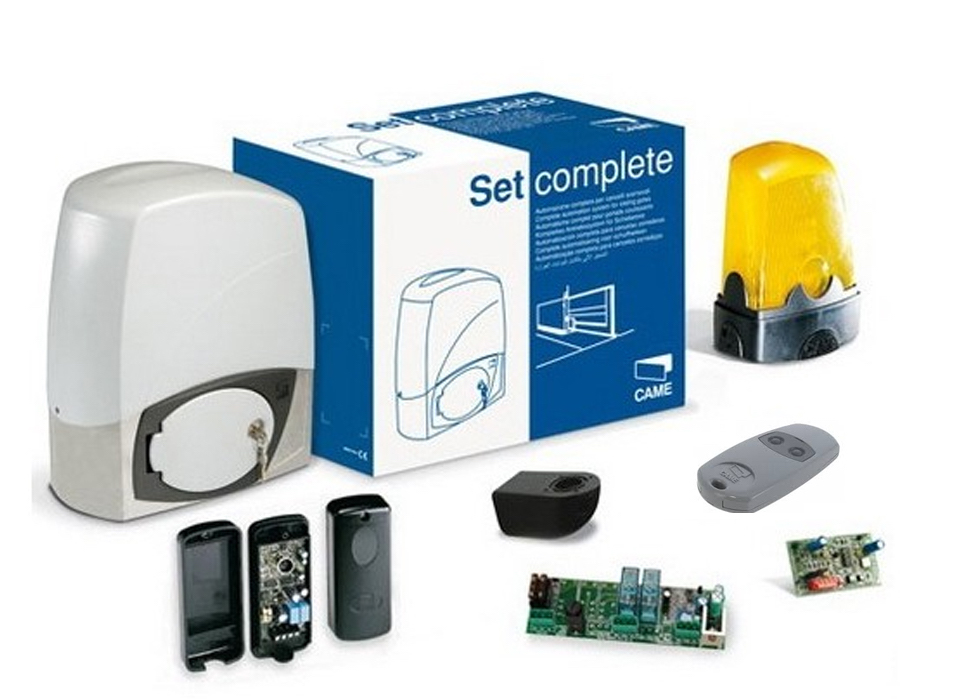

Details of the CAME BX-243 Kit

This kit includes the following products:

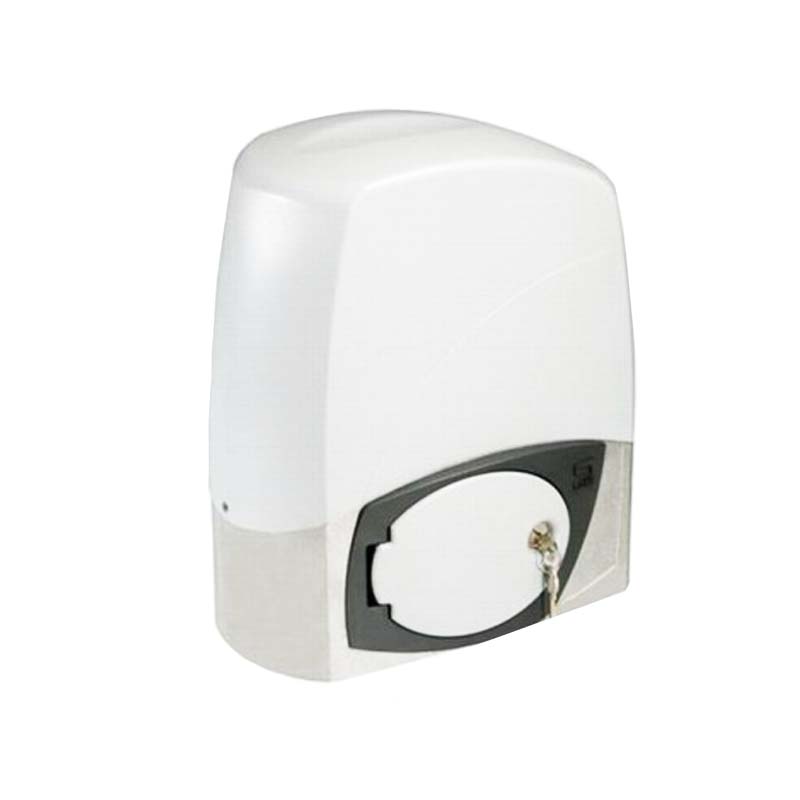

• A CAME BX-243 motorization, powered by 24 V, with an integrated control unit
• A two-channel transmitter at 433Mhz CAME TOP 432EE
• A plug-in radio board CAME AF43S
• A set of photocells with a range of 10 m of type CAME DIR10
• A flashing light CAME KLED24 (24V)
• A KIAROS flashing light support
• A signaling plate
• A complete technical manual

Installation of the CAME BX-243 Kit

How to install my CAME BX-243 motorization?

You can install your CAME BX-243 motorization by clicking here. This is the product manual available on our site.

To program my CAME AF43S plug-in radio board

WARNING: ELECTROCUTION HAZARD. THIS PRODUCT MUST ONLY BE HANDLED OR INSTALLED BY QUALIFIED PERSONNEL.

For more information on programming your receiver, we invite you to consult the product programming manual on our site by clicking here

Programming the CAME TOP432EE remote control

To set up your CAME TOP432EE remote control using the receiver of your motorized and automated gate, please:

• First, open the receiver of your motorized and automated gate to access the CH1 and CH2 buttons.
• Then press and hold the CH1 button on the receiver.
• While holding the CH1 button, press button 1 on the new CAME TOP 432EE remote control and then release them simultaneously.
• Next, press the CH2 button on the receiver.
• While holding the CH2 button, press button 2 on the new remote control and then release them simultaneously.
• You can now use the CAME TOP remote control.

For more information, we invite you to consult the PDF manual of this product here

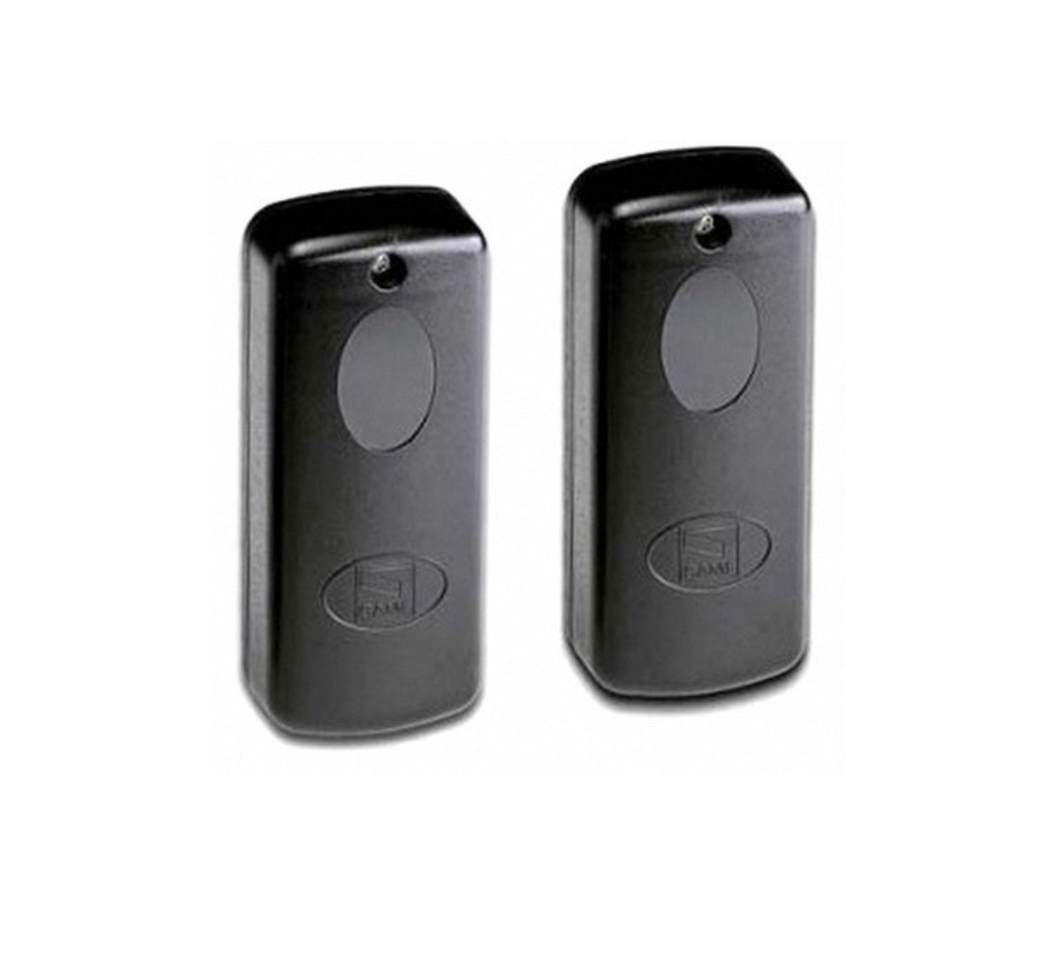

Installation of the CAME DIR10 photocells

To program your CAME DIR 10 photocells, you must:

• First, position them facing each other
• Fix the photocells at a height of about 50 cm from the ground.
• Provide, if necessary, the housing for recessed mounting and fix it
• Secure the housing to the wall or base using the provided screws and any necessary plugs
• Finally, select the type of power supply and make the necessary connections.

Attention: to remove the board, only force on the indicated side. Secure the cover.

For more information, we invite you to consult the manufacturer’s manual here

How to install the CAME KLED24 flashing light

For more information and details on the procedure to follow, you can consult the PDF user manual on our site by clicking here

To install this flashing light, you must:

• Prepare the necessary power supply cables.
• Open the flashing light (A) and drill the base from the bottom (B).
• Pass the cables from the cabinet through the hole. Then, secure the base of the flashing light to pillar C using the appropriate screws and plugs.
• Connect the wires to the flashing light board.
• Close everything up.
