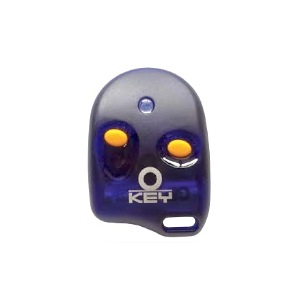

Presentation of the KEY TXB-42

How to combine comfort and speed? The manufacturer KEY with its model of KEY TXB-42 Remote Control has the answer to this question!

Remarkable signal performance

By using this KEY TXB-42 Remote Control, you will be able to use a quality beep with interesting signal performance. With a frequency of 433.92 MHz, the KEY TXB-42 Remote Control offers its user the ability to open and close their electrical devices as they wish, whether it is a garage door or an entrance gate.

An intelligent transmitter

Thanks to its self-learning technique, the KEY TXB-42 Remote Control will register on the receiver in no time for almost immediate use.

With this KEY TXB-42 Remote Control, your gate will respond in minimal time. Equipped with two channels, you can program your beep with a simple push to respond perfectly to two different commands.

An amazing design

With its midnight blue color, this KEY TXB-42 Remote Control stands out from other remotes with uniform colors. Its yellow buttons are easily identifiable. As a result, this remote can be handled by anyone. Even the clumsiest will be surprised by its exceptional grip.

Portable everywhere

Moreover, on the lower right side, this KEY TXB-42 Remote Control has a hole to insert a keyring. An added advantage to avoid losing this device. Also, its minimal dimensions offer great freedom of movement. Its 50 mm height and only 13 mm thickness make this beep an ideal travel companion. Finally, its 12 V battery (type 23A) will allow you to use this remote control at all times.

Compatibility of the KEY TXB-42 Remote Control

This remote control is compatible with the following models:

• The model KEY TXP-42
• This remote control is also compatible with receivers from the KEY brand

Programming the KEY TXB-42 Remote Control

Attention: A prolonged press on the programming button of the receiver (P) will delete all remotes registered on that receiver.

How to configure my remote control with a receiver that has a P button:

1. Open the casing of your receiver, next to your motorization.
2. Locate the programming button P on the receiver board.
3. Press the P button. The receiver’s LED should blink once.
4. Release the programming button P.
5. Press a button to be registered on your new remote while holding it down. The receiver’s LED blinks.
6. Release the button on your new remote.
7. Wait ten seconds.
8. Congratulations! Your new remote is programmed and ready to use.

How to configure my remote control with a receiver that has an S button and a P button:

1. Open the casing of your receiver located next to your motorization.
2. On the receiver board, press the S button. The receiver’s LED lights up.
3. Release the button.
4. Press the P button. The receiver’s LED blinks once.
5. Release the button.
6. Press a button to be registered on your new remote.
7. Hold it down. The receiver’s LED blinks.
8. Release the button on the remote.
9. Wait 10 seconds.
10. Well done! Your new remote is programmed and ready to use!

For more information, we invite you to consult the PDF manual here

FAQ for the KEY TXB-42 Remote Control

What are the key features of this remote control?

This remote control is calibrated to a frequency of 433 MHz, its dimensions are 50 mm in height, 13 mm in thickness, and 36 mm in width.

How many channels can it configure?

This remote control can configure up to two different channels. Ideal for configuring the opening and closing of your gate!
