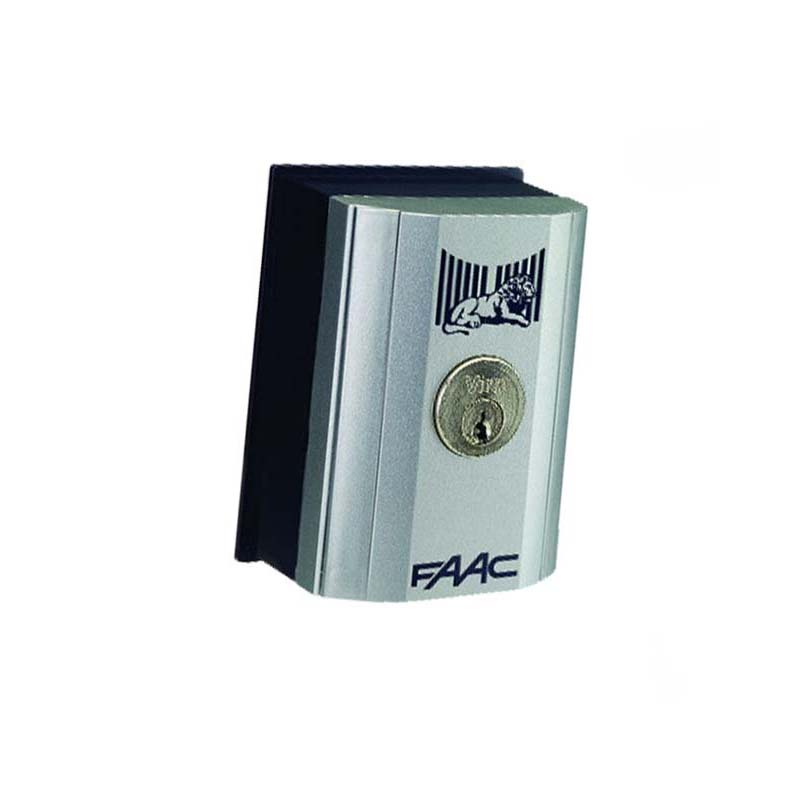

Presentation of the FAAC T10E key switch (num.06) The FAAC T10E key switch (num.06) is an impulse donor system. It is used to control your automation by inserting the key into the lock of this product. According to the technical specifications provided by the manufacturer, this contactor has a single mini-switch (capable of sending a single command). It is by rotating the key in the lock that the switch is activated. Note, however, that when the key is released, it returns to its initial position. For the power supply of this product, note that it is 30 V (DC/AC) / 0.1 A. Designed by the FAAC teams, this contactor has had particular care given to its resistance. FAAC knows that the criterion of reliability is important for their various customers. Thus, the protection index of this contactor is IP54. All dust and liquid splashes coming from all directions will therefore have no effect on your accessory. So that you install it anywhere, note that this accessory has an operating temperature of between -20°C and 55°C. You will therefore not be restricted by the location where you decide to install the product. A particular number You will also have noticed it on this product: the FAAC T10E key switch (number 06) has a particular number, in this case the number 06. Linked to the two keys which are supplied with this product, this number indicates that only keys with this number can operate this device, also numbered with the number 06. Please note: ONLY keys numbered 06 can operate with the FAAC T10E key switch (number 06). Installation of the FAAC T10E key switch (num.06) The installation of this accessory is possible on the wall, but also on a column. For the wall, this must be achieved using an embedding tube / a tube or an external sheath. How to install this product? Prepare the electrical connections Then, to install it on the wall, attach the boxes with the corresponding gasket. You can use dedicated screws and dowels. Note that this button is equipped with a mechanical safety stop. This does not allow the body of the case to be inserted or removed, unless you keep the lock turned using the key. Subsequently, for the electrical connections, proceed as follows: First, make the electrical connections on the terminals of the miniswitches Remember that each miniswitch must be used to send only one command. Next, make the electrical connections to the electrical control equipment, following the instructions. Finally, using the components provided, assemble the FAAC T10E model. Details of the instructions are given in the user manual available upon opening your product. FAQ for the FAAC T10E key switch (number 06) What are the dimensions of this product? This product has a length of 95 mm and a width of 70 mm as well as a thickness of 45 mm. Can you tell me more about the FAAC brand? Present on five continents and with around thirty subsidiaries around the world, FAAC has established itself as a benchmark in opening and closing automation solutions. This is thanks to the reliability, durability and elegant design of its products. FAAC offers automation for gates, for garage doors, for industrial doors, for pedestrian doors, as well as a multitude of other products and accessories intended to improve your comfort. Where can I find other FAAC brand products? You can find other FAAC brand products for your home on the Allo Remotecontrol website, by clicking here. Click and you will have access to a multiplicity of systems from the Italian brand. Why buy this product on Allo Remote Control? First, your order is shipped the same day Then the 1-year warranty is offered (possible extension up to 2 years – see T&Cs) Finally, telephone assistance (08 99 25 30 57) or by email (assistance@alloremotecontrol.com) is available 5 days a week
