About the FAAC TM433DS-2 Remote Control

The use of the FAAC TM433DS-2 remote control aims to reduce or even eliminate human intervention in the opening and closing of equipment such as gates.

This small wireless device is connected to a receiver placed next to the motorized and automated gate.

It operates on a frequency of 433.92 MHz and can simultaneously control two automated devices. The control of these devices is done through two buttons located on the remote control.

To power the small wireless device, simply insert a 12V alkaline battery. Note that the remote control consumes very little energy, which will prevent you from having to replace the battery too often.

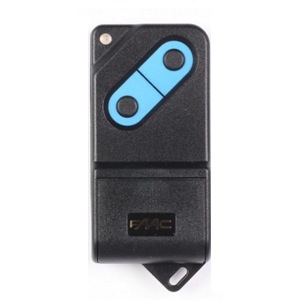

The remote control features a rather simple design with its rectangular shape, black color, and a touch of sky blue around the two buttons.

It is worth noting that the FAAC TM433DS-2 is compatible with the FAAC TM433DS1, FAAC TM433DS3, ADYX JA400, GENIUS JA400, CASALI JA400.

The FAAC TM433DS-2 Remote Control is Reliable and Ultra-Durable

Reliability and durability are two essential elements for a remote control like the FAAC TM433DS-2. Indeed, it should not be forgotten that the device primarily serves as an electronic key. The opening and closing of your gate will therefore depend on its effectiveness.

Low-quality remote controls have the unfortunate tendency to break easily or to present bugs or malfunctions unexpectedly.

The FAAC TM433DS-2 remote control has been made from electronic components and solid, durable materials. Thus, it will not easily get damaged with regular use and potential shocks.

The FAAC TM433DS-2 Remote Control is Easy to Handle

The main advantage of the FAAC TM433DS-2 remote control is that it allows the user to enter or exit their home with minimal effort and as quickly as possible. The presence of multiple buttons may detract from the remote control’s appeal, as its use would become more complicated.

Fortunately, the TM433DS-2 remote control only has two buttons. Controlling an automated door or gate will therefore only require a simple press of one of the buttons.

It should also be noted that before being able to use the remote control, you will need to configure its buttons and connect it to the receiver of the door or any other automated equipment you wish to control. This configuration or setup has been designed to remain accessible to all users. It will only take a few minutes.

The FAAC TM433DS-2 Remote Control is Compact

The FAAC TM433DS-2 remote control has been designed so that the user can easily carry it with them. It has a length of 76 mm, a width of 38 mm, and a thickness of 17 mm. The remote control device is therefore very compact. It will easily fit on your keychain, in your pocket, or in your bag,…

As an electronic key intended for multiple uses throughout the day, the TM433DS-2 remote control should indeed remain within easy reach of the user.

Configuring the FAAC TM433DS-2 Remote Control

As mentioned earlier, the configuration or programming of the FAAC TM433DS-2 is accessible to everyone. There are two methods to perform this configuration: via a pre-programmed remote control or via the receiver.

Program the New FAAC Remote via a Pre-Programmed Remote

If you already have a remote control correctly connected to the receiver you want to link the new FAAC remote to, simply:

• Open the case of the pre-programmed remote control.

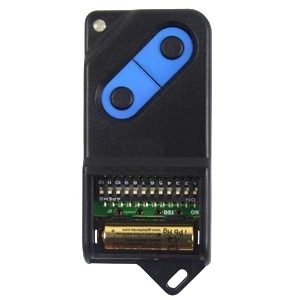

• Carefully observe the arrangement of the row of switches on the motherboard.
• Also open the case of the new FAAC remote control.
• Adjust the switch arrangements of the new remote according to the pre-installed remote. You will then just need to test it.

Program the New FAAC Remote via the Receiver

• This second method should be used if you do not have a pre-programmed remote or if the first method does not work. You will need to:
• Open the case of the receiver to be linked with the new remote control.
• As in the previous procedure, carefully observe the arrangement of the switches on the motherboard of the receiver.
• Also open the case of your new FAAC remote control.
• Adjust the position of the switches on the motherboard of the new remote according to that of the receiver, and you’re done.

Good to Know

Some models of remote controls may have additional rows of switches. Do not panic. As with the previously mentioned methods, simply arrange these additional switches according to the arrangement of the switches of the pre-programmed remote or that of the receiver of your gate.

It may also happen that the FAAC TM433DS-2 remote control still does not work after applying the two programming methods mentioned above. In that case, you will need to reverse the position of each switch on the new remote compared to those of the pre-programmed remote or those of the receiver.

Risks of Confusion

There is often some confusion between the FAAC 433 DS-2 model and the FAAC TM868DS.2 model. However, these two gate remotes operate on different frequencies, namely 868 MHz for the TM868DS.2 and 433.92 MHz for the FAAC 433 DS-2.

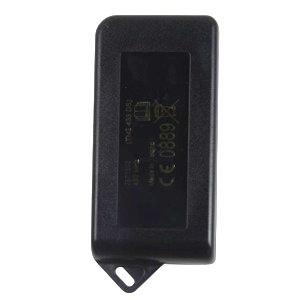

To avoid any confusion, it is advisable to carefully check the reference on the back or inside your remote control.

Specifications:

Frequency: 433.92 MHz

Supports 2 channels

Power Supply: 1 x 12V alkaline battery

Dimensions: 76 x 38 x 17 mm (Length x Width x Thickness)

Color: black

Number of buttons: 2
