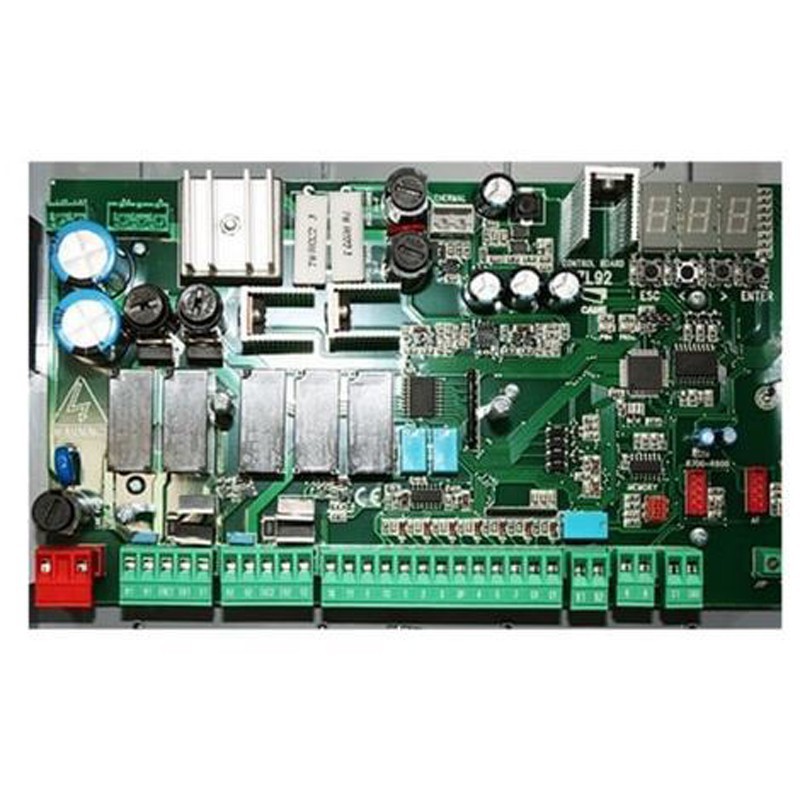

Presentation of the CAME ZL92 electronic card Attention: If you wish to replace the 3199ZL90 model, please note that you must purchase the CAME 88006-0072 terminal block kit. The CAME brand is recognized throughout the world for its quality products. Whether remote controls, receivers or photocells, the Italian manufacturer designs products to improve your comfort in your home. With the CAME ZL92 electronic card, the Italian firm wants to offer you a product that will allow you to take control of your engine. The CAME ZL92 electronic card (powered by 230 V at 50/60 Hz) is a spare part, which will allow you to complete your control cabinet. But what is a control cabinet? Also called “control logic”, this device allows you to fully control and configure your automation systems as you wish, in the case of the CAME ZL92 in 24 V DC, for example swing gates. Acting as a sort of “brain” for your motor, this CAME ZL92 electronic card can also control the operating status of your photocells at each opening or closing command. Also, an anomaly of these safety devices may be reported above. Ideal for adjusting the operation of the motors. In addition, this electronic card allows you to configure other parameters such as the automatic closing time after partial opening or for pedestrians, from 1 to 180 seconds, or the operating time of the motors in the opening or closing phase. The latter can be set from 5 seconds to 120 seconds. In addition, with this small card, you can adjust the obstacle detection sensitivity while maneuvering your motor. As you will have understood, the adjustment and customization possibilities are numerous. Use of the CAME ZL92 electronic card This electronic card is to be installed in the ZL92 control cabinet. The latter was designed to control 24 V DC automation systems for swing gates in the following ranges: The CAME STYLO range The CAME MYTO models The CAME FROG-J motors The CAME AMICO motors. Programming the CAME ZL92 electronic card Warning: Installation must be carried out by qualified and experienced personnel To program this electronic card in your control cabinet, we invite you to consult the programming instructions for this product by clicking here. For more information on the possible settings within the control cabinet, we invite you to consult the manufacturer’s instructions for the corresponding control cabinet by clicking here. How to test your engine? (in five steps) Select “A 2”. Press ENTER to confirm. Select 1 to enable testing. Press ENTER to confirm. The indication ”—” will be displayed while waiting for the command. Press and hold the key with the “>” arrow and make sure that the leaf of the second motor (M2) performs an opening maneuver. (Note: if the leaf performs a closing maneuver, invert the motor phases (M2 with N2). Carry out the same procedure with the key indicated with the arrow “<” to control the leaf of the first gear motor (M1). Note : if the leaf performs a closing maneuver, invert the motor phases (M1 with N1). You can find this methodology in the manufacturer’s manual with illustrations to help you. FAQ of the CAME ZL92 electronic card Where can you buy other CAME brand products? You can buy other CAME brand products by clicking on the link here. Why buy your product on Allo Remote Control? – First, know that your satisfaction is the priority. We will process your produced with great care. – Then, your order is shipped the same day – Then, a 1-year warranty is offered (possible extension up to 2 years – see CGV) – Telephone assistance (08 99 25 30 57) or by email is available 5 days a week – If the customer notices a defect in the product, he has 15 days from his purchase. This is to return to Allo Remote Control.
