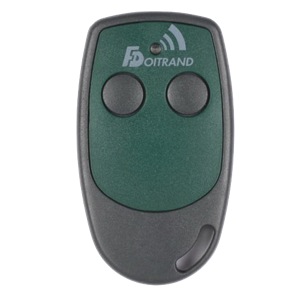

Presentation of the Doitrand TS2DE v.1 Remote Control

With the Doitrand TS2DE v.1 remote control, you can easily control your gate and garage door motors. Its programming is very simple and can be done in the blink of an eye thanks to the provided manual. The casing is lightweight, and the handling of this remote control is very quick due to its intuitive design.

Note: this remote control is an older model. We offer the MASTER-D remote control as a replacement, a new generation remote that is perfectly compatible with older installations. If your installation dates back to before 2018, this is likely the remote control you were provided.

As with all our products, we offer a one-year warranty for the purchase of this remote control. For even more peace of mind, you can choose to opt for a second year of warranty when finalizing your order (refer to our T&Cs).

Features of the Doitrand TS2DE v.1 Remote Control

This remote control has two programmable black buttons and operates with CR2016 type batteries. Its operating frequency is 433.92 MHz and it is programmed with a mini switch system (dip-switch). More details on the operation of the remote control are available in the attached manual.

The remote control is perfectly suited for individual or residential use. It easily adapts to several types of automatic gates and garage doors. Its simple and effective design makes it usable by everyone, without any issues.

Finally, the remote control casing is oval-shaped. Its dimensions are 67 x 35 x 13 mm (length x width x thickness), making it a compact remote that is easy to handle and store.

Doitrand: a Reputable and Recognized Brand

Doitrand remote controls are internationally recognized for their manufacturing quality and efficiency. Whether for domestic or professional use, you will likely use your remote control every day, several times a day. That’s why it’s important to choose a brand with a well-established reputation.

Doitrand is known for designing quality remote controls, in terms of the materials used, the longevity of its products, and their ease of use.

Feel free to check out our range of Doitrand remote controls.

Programming the Doitrand TS2DE v.1 Remote Control

Before you can use this remote control correctly, you must first program it. The programming step allows you to assign functions to the remote control buttons and establish a link between your automated motorized equipment and the remote control.

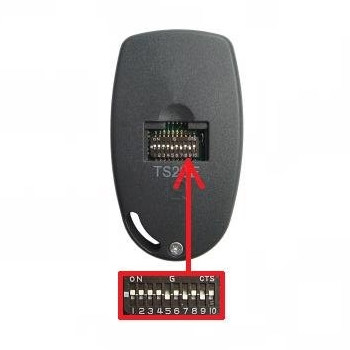

The methods for programming remote controls vary from one model to another. For the Doitrand TS2DE v.1 remote control, you simply need to adjust the mini switches (also called “dips switches”) located behind the casing. However, you will need a remote control that is already working with your gate.

1. First, you will need to open the casing of the already functional remote control and correctly check the position of each mini switch.
2. On the Doitrand remote control that will replace the old one, adjust the position of the output mini switches to match the mini switches of the functional remote control.
3. Once these tasks are completed, you will only need to close the casing of the remote control and perform a test to determine if everything works.

Advantages of the Doitrand TS2DE v.1 Remote Control

This remote control has many advantages that make it a highly regarded and appreciated model among users:

• Ease of use: both simple and aesthetic, the design of the Doitrand TS2DE v.1 is functional and effective while adding a touch of style.
• Easy installation: programming this remote control is really very easy. You just need to follow the three steps above to be able to use it very quickly. A hassle-free remote control!
• Portable everywhere: with its very light weight and quality materials, the Doitrand TS2DE v.1 is a particularly lightweight remote while being shock-resistant and durable over time. You can easily slip it into your pocket, bag, or on your keychain… you’ll almost forget it’s there!
