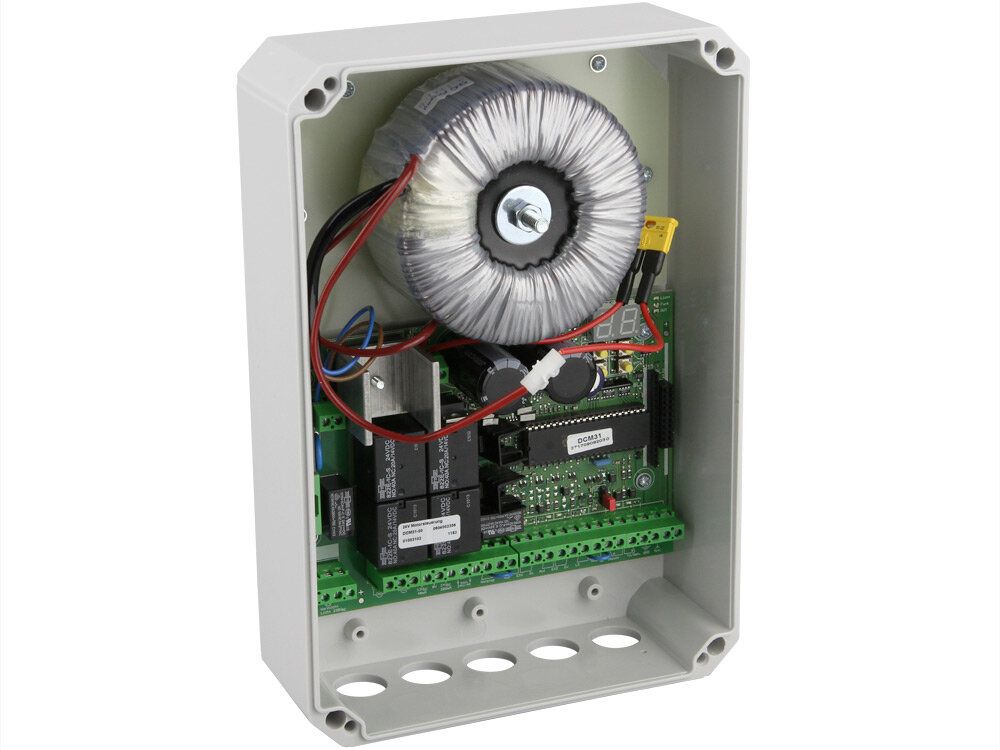

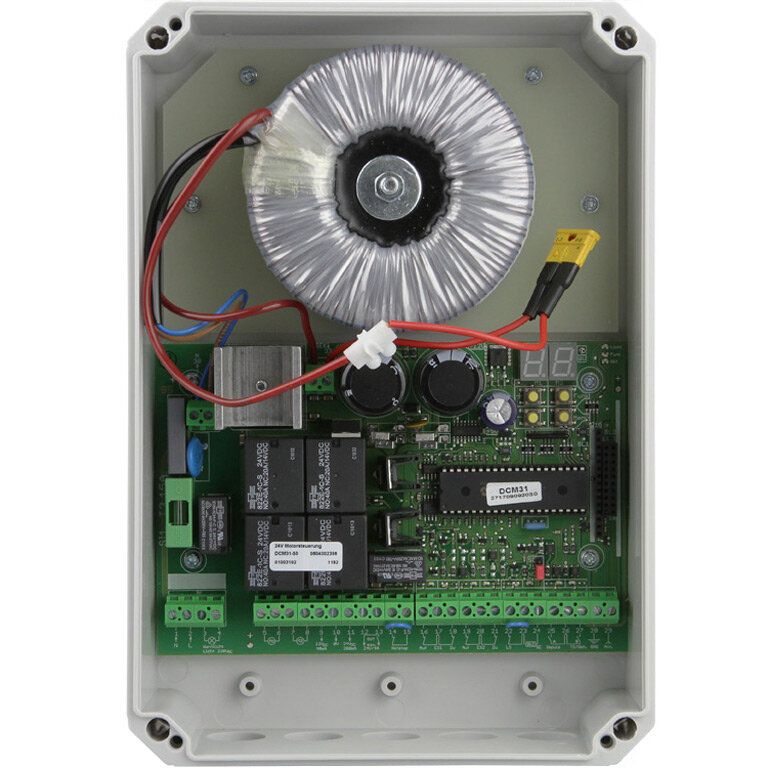

The DICKERT DCM31-03 motor control operates with a 24 V (AC) power supply. It has 24 different programmable menus and can be used to automate swing gates, tilting gates as well as single or double-leaf sliding gates.
Presentation of the DICKERT DCM31-03 motor control The DICKERT DCM31-03 motor control is a 24 V (DC) powered product. It is equipped with 24 programmable menus and can be used to automate swing gates, tilting gates, but also sliding gates with one or two leaves. This control is equipped with a radio receiver for a plug-in radio module in different frequencies. The operating temperature of this product is estimated between -20°C and 50°C. DICKERT DCM31-03 Motor Control Compatibility This product can be used with the elements below: with DICKERT E16-43A100 receivers then with DICKERT E16-43A400 DICKERT E16-868A100 then with DICKERT E16-868A400 DICKERT HFM40- 51 (40.685 MHZ FM) also with DICKERT HAM27-51 (27.015 MHZ AM) also with DICKERT HAM40-51 (40.685 MHZ AM) DICKERT HQAM433P-57 (433.92 MHZ AM) DICKERT HQAM868-57 (868.3 MHZ AM) also with the DICKERT HQAM868-67 (868.5 MHZ AM) DICKERT HQAM-SMART-57 (868.3 & 433.92 MHZ) finally with the DICKERT HQFM868-50 (868.8 MHZ FM) Programming the DICKERT DCM31-03 Motor Control Programming this product is available in a dedicated manual. The latter is available on our site, by clicking here. DICKERT DCM31-03 Motor Control FAQ What are the dimensions of this control? This product has a height of 255mm, a width of 176mm and a thickness of 80mm. It weighs 3.1 kg and has a Protection Index of IP54. Can you tell me more about the DICKERT brand? Dickert Electronic GmbH is a company founded in 1984 by Hans Dickert. It specializes in electronics for automation, remote controls, but also for access systems. Known for providing qualitative, secure and customer-oriented products, DICKERT has invested nearly 5 million euros in 2022 to develop its premises and activities. Proof of its qualities, the German company supplies customers around the world in various sectors including the construction of gates, water management, elevators, but also alarms and security technologies. Lighting management is also affected. Each year, more than 300,000 transmitters (and more than 300 variants) leave the premises of the DICKERT factory. Do you have other DICKERT products on your site? DICKERT offers products such as remote controls by clicking on this link. Do you want receivers? DICKERT also has other references available at this link. Why buy this product on Allo Remote Control? First, your order is shipped the same day Then the 1-year warranty is offered (possible extension up to 2 years – see T&Cs) Finally, telephone assistance (08 99 25 30 57) or by email (email@example.com) is available 5 days a week
