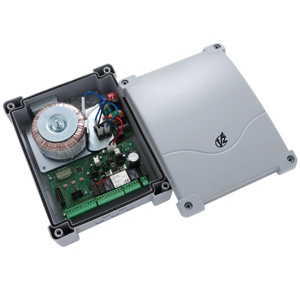

Presentation of the V2 CITY2 L control cabinet (12A037) The V2 CITY2 L (12A037) digital control cabinet is a device designed for swing and sliding gates. It is used to manage two 24 V (DC) motors, within the limit of 2x 100 W. First choice, this product has the ability to motorize these two types of gates for quality use. It is powered by 230 V. From the point of view of technical specifications, the V2 CITY2 L control cabinet (12A037) has multiple parameters to take into account: its maximum total load is 200 W, the highest load tolerated for each motor is 100 W 7 W is the maximum load of accessories powered by 24 V Multiple qualities in one system System produced with the most extreme precautions, it is endowed with multiple advantages. For example, it has a quick connector, in order (for example) to connect a V2 MR2 type plug-in receiver. In addition, it has multiple inputs for an emergency battery bank, but also for an encoder. On the output side of this system, there is one at low voltage for a warning lamp or for a 24 V light. The V2 CITY2 L control unit (12A037) also has an obstacle detector function, with a sensor amperometric with programmable threshold. But that’s not all ! It is also possible for this product to slow down the leaves. And this, in the end of stroke zone to prevent noise and bounce when closing. To find out more about the characteristics of this product, please consult the list of specifications, by clicking here. Security, a major issue for V2 Furthermore, from a security point of view, this device is not left out. It has an operating temperature that can range from very low temperatures (up to -20°C!) to 60°C. Thanks to this advantage, this control cabinet will not be dependent on the environment where it is located. Also, the IP55 protection index protects this system, particularly against dust, but also against jets of water from all directions with a hose. Its installation should not cause you any major problems. Its length of 295 mm, width of 230 mm and thickness of 100 mm work in its favor. Its weight of only 1200 grams (or 1.2 kg) as well. Compatibility of the V2 CITY2 L control cabinet (12A037) This control cabinet can be used with: two 24 V (DC) motors, as long as they are each 2 x 100 W Programming of the V2 CITY2 control cabinet L (12A037) A liquid crystal display allows adjustments to be made using the three interactive keys located on it. Additionally, you can also manage an auxiliary channel from a transmitter with this device. If you wish to find out about programming this control cabinet, we invite you to consult the user manual for this product. It can be read in PDF format on the Allo Remotecontrol website by clicking here. FAQ for the V2 CITY2 L control cabinet (12A037) Can I use this product on motors with a 230 V configuration? No, this product cannot be used with motors configured in 230 V, even if the power supply for this control cabinet is 230 V. How is it different from the V2 City2 PLUS (Ref: 12A024) or the V2 CITY2 BC (ref: 12A030) The maximum total load is different, as is the maximum load of each motor. Indeed: for the V2 City2 Plus reference (12A024): 250 W and 150 W respectively within the framework of the V2 CITY2 L reference (12A037): 200 W and 100 W For the 12A030 reference: 250 and 150 W (but be careful, its power supply is 24 V) According to several information, these data are linked to the power consumed by the motor. Can you tell me more about the V2 brand? V2 Remote Controls is a company which, since 1985, has designed and developed integrated systems for home automation. It guarantees comfort and safety on a daily basis. Remote controls, like V2-branded products, are studied and developed by a homogeneous group of enthusiastic and motivated people, putting their abilities and experience to meet the requirements of their customers. Where can I find other V2 brand products? You can find a multitude of V2 brand products on our site by clicking here. Why buy this product on Allo Remote Control? First, know that your satisfaction is the priority. We will handle your product with great care. Then, your order is shipped the same day Then the 1-year warranty is offered (possible extension up to 2 years – see T&Cs) Finally, telephone assistance (08 99 25 30 57) or by email (assistance @alloremotecontrol.com) is available 5 days a week
