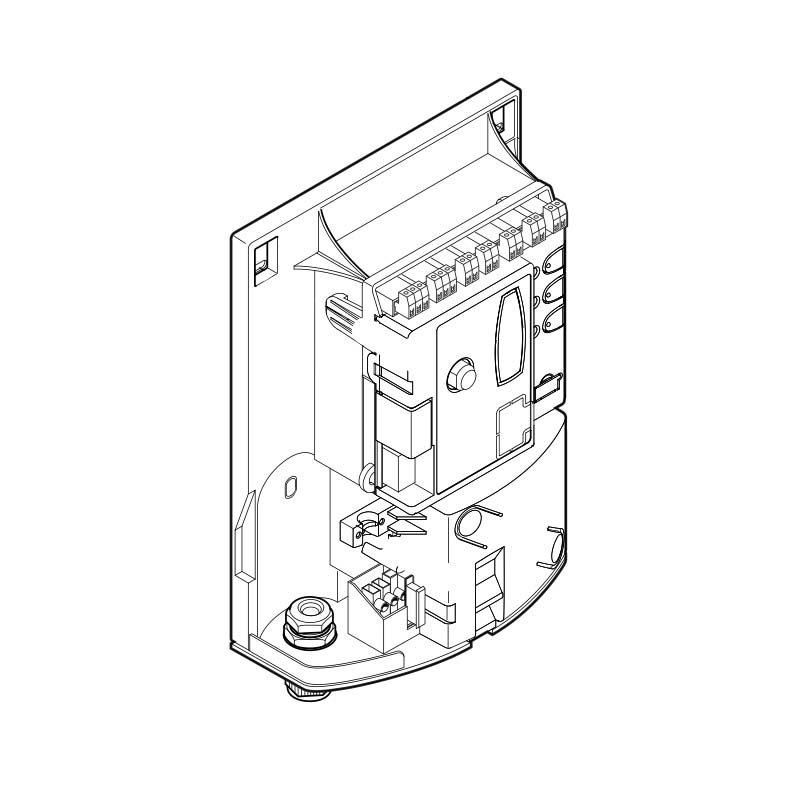

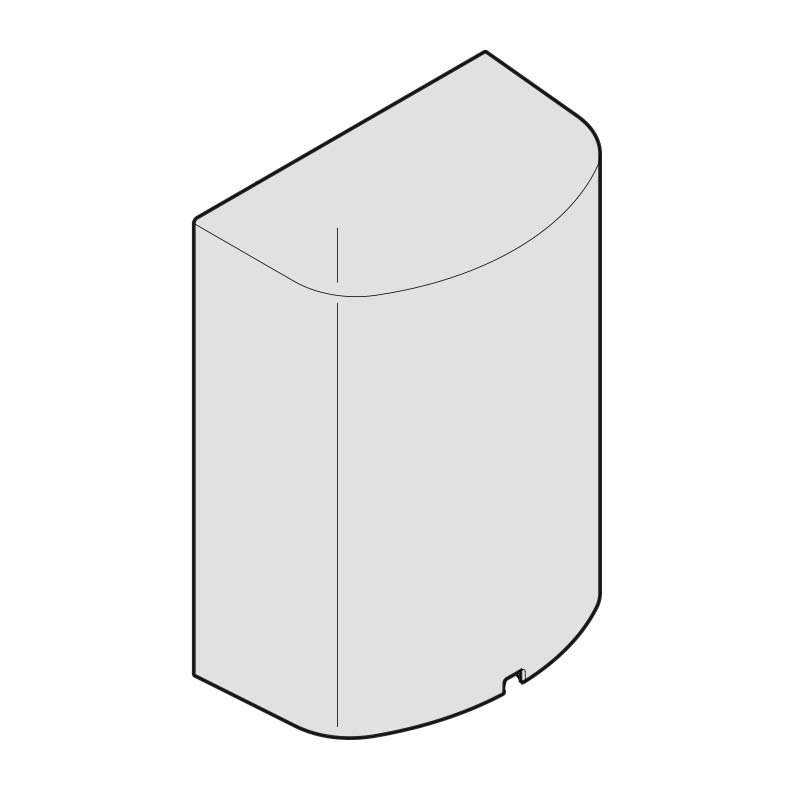

Presentation of the NICE CLB207 control cabinet The NICE CLB207 control cabinet, compatible with the NICE IN100 motorization, is available on Allo Remotecontrol. It is a product whose function is to manage the movements of mechanical actuators, these functioning for the automation of residential doors. It can be used for one or two 24 V motors and it has a radio receiver compatible with NICE ECCO5 transmitters. Great starting power Its mains power supply, according to the manufacturer, is 230 V (50/60 Hz). The power that this product develops at start-up is 160 W (for a duration of 2 seconds), however, its nominal absorbed power is estimated at 70 W. The manufacturer NICE did not forget to insert outputs at these measures. Two motor outputs (at 24 V) are thus present, with a nominal current of 1.1 A. Note that at start-up, the maximum current of this control logic is 3.5 A, for 2 seconds. Installable in several environments, the manufacturer NICE has made every effort to ensure that its operating temperature is within a wide range. The latter is therefore between -20°C and 50°C. For its part, the protection index of the control logic is categorized as IP44. In summary, this means that this product is protected against bodies larger than 1 mm, and against projections in all directions. Compatibility of the NICE CLB207 Control Cabinet The manufacturer NICE informs you that this Control Logic is functional with: the NICE IN100 motorized system, whose maximum leaf length is 1.8 m and the maximum weight (per leaf) is of 100 kg. Also, this control logic, according to the manufacturer, can work with: NICE ECCO5 transmitters Configuration of the NICE CLB207 control cabinet How to install this control logic? First, choose the installation position. It must be in a protected area away from the risk of shock and close to the gate. The aim is to reduce the length of the cables. Then, remove the cover by prying it using a screwdriver on the opening at the bottom, sliding it a few centimeters. (see Figure 3 of the user manual). Then, prepare the conduit for the passage of the electrical cables so that they can enter through the bottom of your control unit. Drill the bottom of the control unit and use a cable gland (not supplied). This part will be able to pass your cables in order to guarantee the watertightness of the cabinet. (fig. 4) Then, on the bottom, force the two holes at the bottom with a screwdriver. Then mark the drilling points, using the background as a reference. (figure 5) Take a hammer drill and drill into the wall. Then take a 6mm drill bit and insert it into the hole in the 6mm dowels. Then secure the bottom with the corresponding screws. Before closing the control unit, make the electrical connections, consulting the user manual for this product. (figure 6) Finally, place the lid on the bottom about 3 cm higher than the final position. Then push down until the device is completely engaged. (figure 8) To learn more about the control logic and its specific characteristics, please consult its user manual. This is available in digital version, by clicking here. Note that connecting this product is made easier with the long length of these cables. The mains power cables are 30 m, those for the motor outputs are 10 m, and those for the other inputs/outputs are 20 m. FAQ for the NICE CLB207 control cabinet What is the size of this product? This product has a height of 240mm, a width of 180mm and a thickness of 110mm. Also, its weight is 2.8 kg. Can you tell me more about the NICE brand? Founded in the 1990s, NICE is a reputable company. She is one of the best in the field of automation system design. Finally, the NICE firm also offers automation for controlling blinds, vertical blinds and rolling shutters. In addition, the products, accessories and services offered by NICE make your life easier. This while guaranteeing you unparalleled comfort in your home. Where can I find other NICE brand products? You can find other NICE brand products on the Allo Remotecontrol website by clicking on the link here. Why buy this product on Allo Remote Control? First, your order is shipped the same day Then the 1-year warranty is offered (possible extension up to 2 years – see T&Cs) Finally, telephone assistance (08 99 25 30 57) or by email (assistance@alloremotecontrol.com) is available 5 days a week
