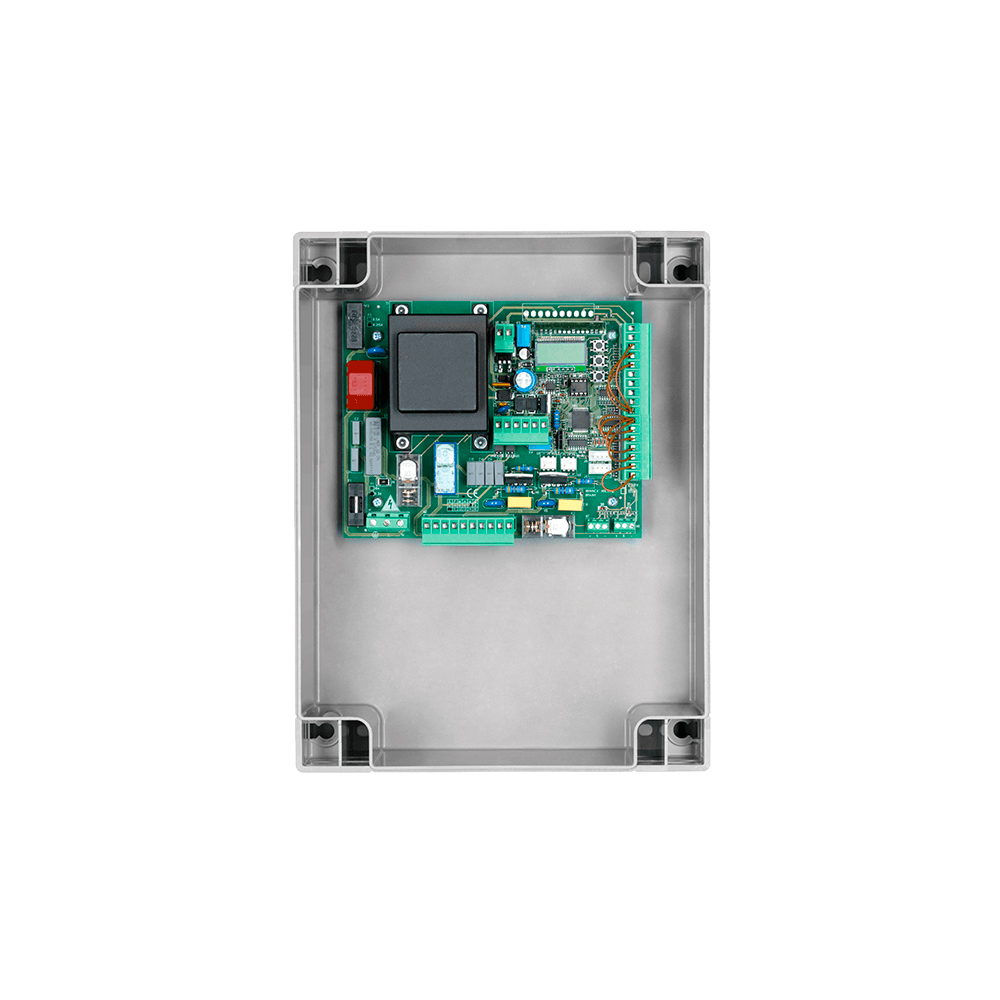

The BENINCA BRAINY control unit is a control unit with a 230 V (alternating current) power supply to a 433.92 MHz frequency receiver. It includes an integrated LCD screen and its receiver has a memory capable of storing 64 codes.
Presentation of the BENINCA BRAINY control center The BENINCA BRAINY control center is a product now available on Allo Remote Control. Its power supply is 230 V (AC) 50/60 Hz. It is equipped with an integrated LCD screen and a radio receiver with a frequency of 433.92 MHz. This receiver has a memory of 64 codes and three different types of coding: Advanced Rolling Code Rolling Code Fixed code Multiple inputs and outputs The terminal blocks of this control unit are removable. In addition, it has automatic and semi-automatic operating logic. This control unit also has several inputs: an encoder input for obstacle detection also an input for separate limit switches for each motor also an input for the different openings and closings (step by step, pedestrians, stops) inputs for photocells, for NF / 8K2 safety edge The BENINCA BRAINY control center also has several outputs: an output for electric locks in 230 V (AC) and 12 V (AC-DC) outputs which can be used as a gate indicator light open, service lighting… Among the other functions of this control unit, you can also automatically adjust the operating parameters for motors with an encoder. But also, you can electronically adjust the torque for each motor as well as the operating times, but also the decelerations. Configure remote control management parameters is also possible with the Advantouch system incorporated into this control unit. The operating account is also kept up to date with this system and a maintenance signal is also present to warn you of any maintenance that may need to be carried out. Good to know: The operating temperature of this product is between -20°C and 60°C The protection index of this product is IP54 Use of the BENINCA BRAINY control unit This control unit can be used with : 1 or 2 motors for swing gates, opposite sliding gates, hydraulic motors and also for industrial accordion doors Installation of the BENINCA BRAINY control center To find out more about this control center, you can consult the manual of the control center -this. It is available at the following link. BENINCA BRAINY Control Center FAQ Can you tell me more about the BENINCA brand? BENINCA is an Italian group that markets automation for gates, garage doors, lifting barriers, as well as other products and accessories related to access control. With 40 years of ideas put into practice, experience, during which Beninca evolved the concept of automation, thus allowing it to be introduced into new dimensions by broadening their horizons for products that are now flagships in the category! I’m looking for Beninca remote controls, what should I do? You can find BENINCA remote controls on our site, by clicking on the following link. There you can find our various ranges of products such as accessories, and also receivers. Why buy this product on Allo Remote Control? First, know that your satisfaction is the priority. We will handle your product with great care. Then, your order is shipped the same day. Then the 1 year warranty is offered (possible extension up to 2 years – see CGV) Finally, telephone assistance (08 99 25 30 57) or by email (email@example.com) available 5 days a week
