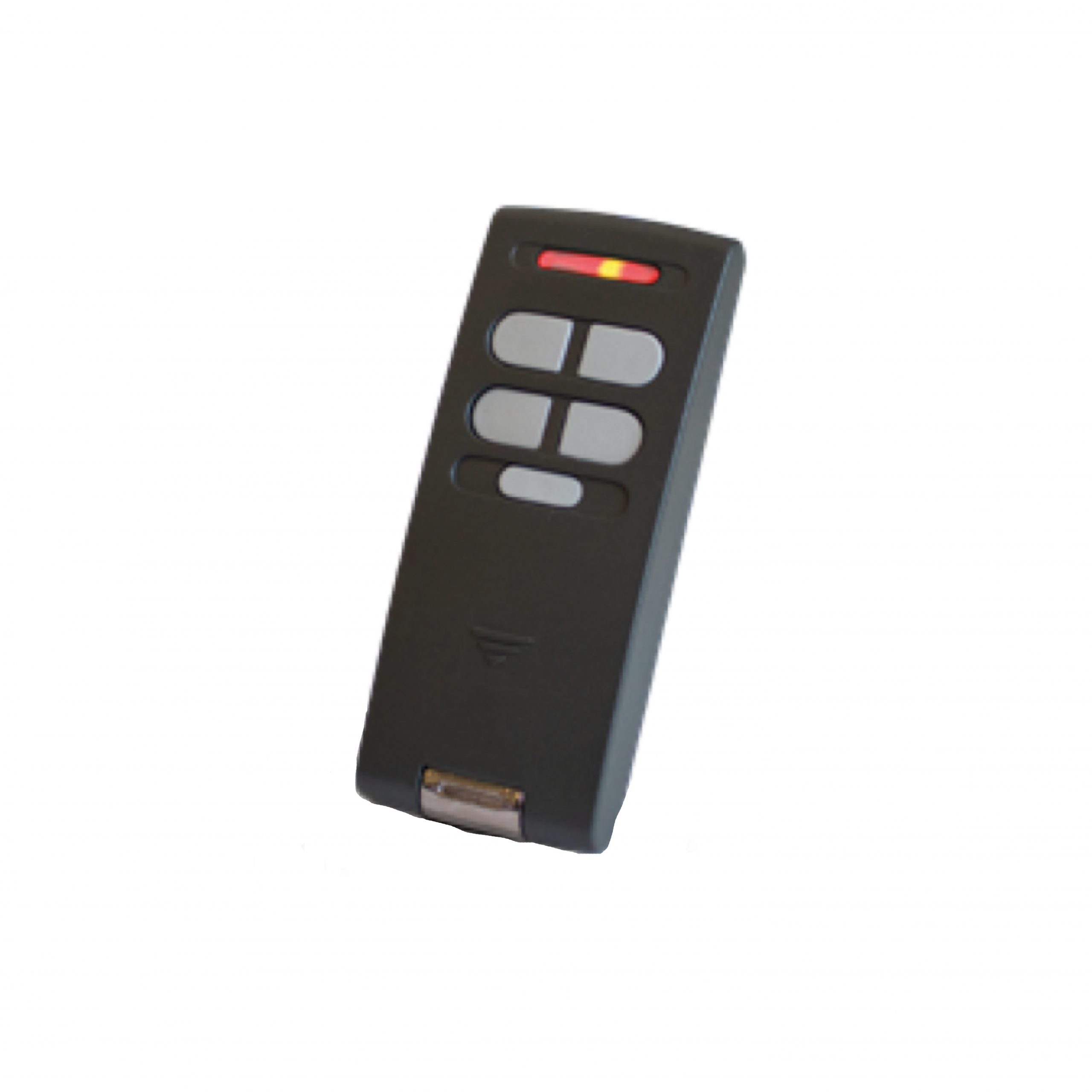

Presentation of the CARDIN TXQ504C8

The CARDIN TXQ504C8 is powered by a CR2032 lithium battery. Coded with a frequency of 433.92 MHz, this remote control is ideal for operating your front door, garage motorization, blinds, or roller shutters simply and quickly.

Eight controllable channels

This CARDIN TXQ504C8 can control not two, nor four, but eight different transmitters. This is done in batches of 4 channels. Note that channels A, B, C, and D of this transmitter are activated by pressing the four buttons on the remote control. For the remaining 4 channels, activation is done in the same way, except you must press a 5th button. This will allow you to change the channel and will inform you with a blue LED.

Integrated rolling code

This remote control is equipped with a rolling code, also known as a rotating code. This means that the code sent to the receiver varies with each new pulse, following an algorithm stored in the transmitter during its programming. The receiver will activate if the rolling code transmitted by the transmitter is in phase with the algorithm it has in memory. Thus, you prevent the duplication of your remote’s code and ensure superior security.

A connected remote control

The advantage of this remote control lies in its system that allows it to communicate with an advanced system, consisting of a server dedicated to 3G/WF connection via devices and software for computers and smartphones.

Portable wherever you want

Easy to store thanks to its minimal dimensions – it has a height of 80 mm, a width of 11 mm, and a thickness of 35 mm – the CARDIN TXQ504C8 can be easily stored in a dedicated storage space. A pocket will do just as well as a handbag. You will no longer have any excuse not to carry it everywhere you go.

To protect you against unwanted activations, this transmitter is equipped with a key lock function. Thus, you can put this device in anyone’s hands with assured confidence. This CARDIN TXQ504C8 has been designed for high resistance. It is notably housed inside a shock-resistant plastic casing.

A remote control that is energy-efficient

This remote has an automatic shut-off system. It activates after 20 seconds of continuous use. This way, your battery will be preserved.

Compatibility of the CARDIN TXQ504C8

This remote is compatible with the following remote models (non-exhaustive list):

• The CARDIN TXQ504C2 remote
• The CARDIN TXQ504C4

Programming the CARDIN TXQ504C8

The programming manual for this remote control is provided when you purchase this product. Please refer to this document to use the CARDIN TXQ504C8.

FAQ for the CARDIN TXQ504C8

What range does my transmitter have?

This remote control has a range of 100 m to 150 m.

How can I improve the range of this remote control?

CARDIN has thought of this possibility. You can purchase the ANS400 antenna from the same manufacturer to improve the range of your CARDIN TXQ504C8 by over 100 m.

Can you tell me more about the CARDIN brand?

To start, in the world of home automation, the Italian brand CARDIN has made its way since its founding in 1974. In the DNA of this brand, there is a real desire to offer you simple, ergonomic, and reliable systems for automation and access control. This is done by making relevant choices in the materials selected for each of their products.

Finally, aiming for excellence is part of their normality. In fact, many of their products, whether remote controls, receivers, or batteries, are used every day around the world by various consumers.

Where can I find other products from the CARDIN brand?

You can find other products from the CARDIN brand on Alloremotecontrol by clicking on the link here.
