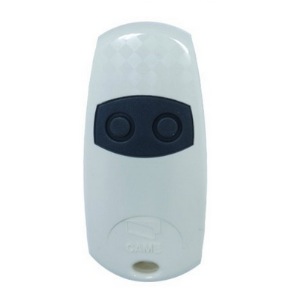

Presentation of the remote control CAME TOP862EE

To control your automation, your gate or garage motors, look no further and trust the Italian brand CAME! With many years of experience, the Italian manufacturer offers, with its remote control CAME TOP862EE, one of the best devices on the market.

Usage up to a hundred meters!

Programmed on a frequency of 868.35 MHz, this transmitter will give you an incredible range for its use. You can operate this beep at a distance of up to 100 m outdoors and 35 m indoors.

Simple installation

Thanks to its self-learning programming – directly in the memory of the receiver – you won’t need a specialist’s intervention to use this beep. A quality transmitter, it is possible with its two black buttons to activate up to two different channels. Operating with CR2016 batteries, optimized for longevity, you will be able to use this remote control in your daily life.

Neat appearance

With its white casing, this remote control CAME TOP862EE can blend into your home without fear. The black background, allowing for quick identification of where the two actionable buttons of your remote control are located, adds a certain elegance to this transmitter.

Minimal dimensions

With a height of 69 mm, a thickness of 12 mm, and a width of 32 mm, you can store this beep in the space that suits you. In a handbag or in a pocket, this device will not leave you.

As a guarantee of quality and to fully satisfy its customers, Alloremotecontrol offers you a one-year warranty on all its products. Even better, you can opt for a second year of additional warranty when placing your order (see T&Cs).

Compatibility of the remote control CAME TOP862EE

The remote control CAME TOP862EE is compatible with the following models:

• The remote control CAME TOP864NA
• The beep CAME TOP 864EV
• Additionally, it works with the receiver CAME RE862M
• Also with the receiver CAME AF868

Moreover, it replaces the models below:

• The model CAME TOP862NA
• The transmitter CAME TOP862EV

Attention: Do not confuse with the non-compatible versions GRAY OR DARK GRAY CASE CAME T432A or CAME ATE02.

Attention #2: This remote control exists in two frequencies: 433.92 MHz and 868.35 MHz. Models with different frequencies are incompatible. The color of the buttons is crucial for this model, as it is linked to the frequency. Do not confuse this model with the remote control of the same appearance CAME TOP432NA or the CAME TOP 432 EE whose buttons are gray.

Programming the remote control CAME TOP862EE

How to program your new remote control TOP862EE from an already functioning remote control?

1. Press both buttons on your new remote control. A diode should blink slowly then quickly.
2. Then press the button you wish to program. The diode should light up steadily.
3. Position your two remote controls back to back.
4. Now press the button on your old remote control that you wish to copy. Your new remote control should blink three times.
5. Congratulations! Your new remote control is programmed!

How to program your new remote control TOP862EE from a receiver?

1. You must first open the receiver of your motorized and automated gate to access the CH1 and CH2 buttons.
2. Then press and hold the CH1 button on the receiver.
3. While holding the CH1 button, press button 1 on the new remote control CAME TOP862EE and then release them simultaneously.
4. Then press the CH2 button on the receiver.
5. While holding the CH2 button, press button 2 on the new remote control and then release them simultaneously.
6. Well done! You can now use the remote control CAME TOP862EE.

For more information, we invite you to consult the PDF manual of this product here

FAQ of the remote control CAME TOP862EE

Where can I find other products from the CAME brand?

You can find other products from the Italian brand CAME on Alloremotecontrol by clicking the link here
