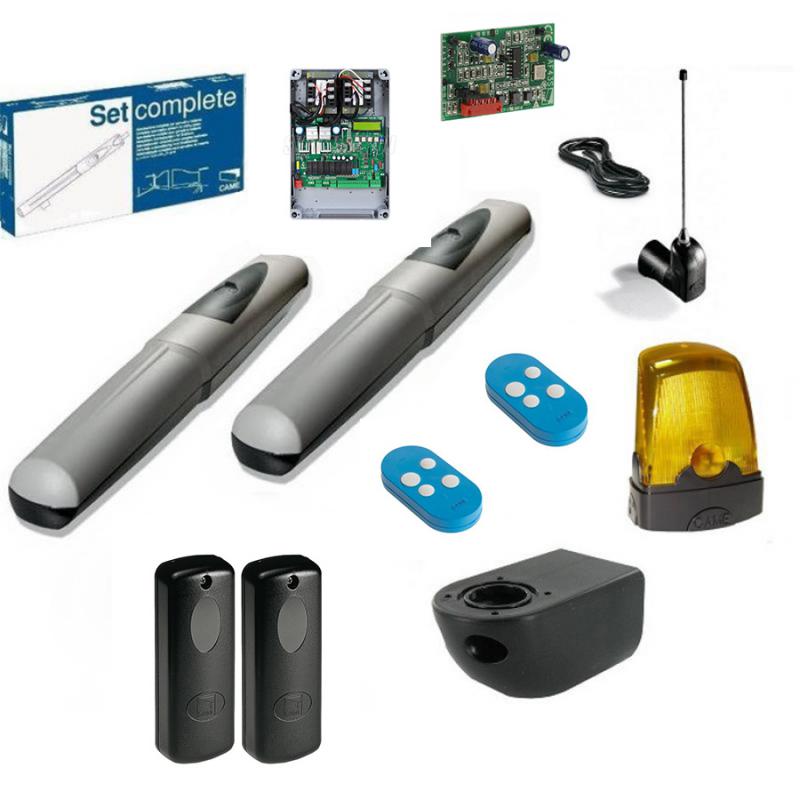

Presentation of the CAME AXO30K01 Kit for swing gate motorization The CAME brand offers you a high quality product thanks to the CAME AXO30K01 kit, for your double-leaf gate. This 24V version for your engine gives you assured performance as well as very high reliability. In addition, it has a standardized connection using a single cable with 3 different conductors. Then, in the event of a power outage, the system automatically switches to battery backup (optional) to ensure the proper functioning of the gate until it returns to normal. With the CAME AX3024 gear motors contained in this kit, you can use this equipment within the limits of the following dimensions for the length of your door: 3 m for 500 kg with electric lock to add 2.5 m for 600 kg with electric lock to add 2 m for 800 kg without adding a lock Also, you have a CAME ZLJ24 electronic cabinet. The real brain of your engine, it is this device as well as all the components inside that allow you to adjust and configure your engine. An electronic card accompanied by a screen The CAME AF43S multifunction electronic card included in the CAME AXO30K01 kit allows you to control your motors and automation systems, as you wish. This product has an LCD screen, but also integrated radio decoding. This ensures better safety with an automatic obstacle detection device. Take advantage of two quality remote controls Included in the CAME AXO30K01 kit, you include two 4-channel dual frequency remote controls 433.92 and 868.35 MHz, blue with CAME TOPD4RBS rolling code (806TS-0121). These are among the latest additions to the CAME brand. With their dual frequency (433.92 MHz and 868.35 MHz), you can control several motors on different frequencies using its transmitters. In addition, the CAME TOPD4RBS is very easy to use with their case which is very handy and easy to store. This way, you can carry your remote controls in a storage space, in a pocket or in a handbag. Improve the range of your transmitters In addition, inside this CAME AXO30K01 kit, you will be able to benefit from the CAME TOP A433N antenna. With its minimum size (43 cm in length; 10 cm in width; 3 cm in thickness), you can place this antenna close to your receiver. This will improve the range of your remote controls from 50 to more than 100 meters. In addition, CAME has thought of your safety inside this CAME AXO30K01 kit…. by offering you CAME DIR10 photocells. With an infrared range of 10m, this CAME brand accessory can stop your motorization if an obstacle is spotted on the path to your gate. In addition, these photocells are accompanied by a CAME KLED24 signaling light. Thanks to the flashing yellow light of this item, you will be alerted if an individual is on the path of your motor vehicle. Detail of the CAME AXO30K01 kit By purchasing this kit, you obtain the following products: Two irreversible CAME AXO 24V operators, with encoder, also called CAME AX3024 One CAME ZLJ24 electronic cabinet Two 4-channel dual frequency remote controls 433.92 and 868.35 MHz, blue rolling code CAME TOPD4RBS (806TS-0121) A CAME AF43S plug-in radio card A CAME TOP A433N antenna 5 m of cable for connecting the antenna (TOP-RG58) A set of photocells with a range of 10 m CAME DIR10 A CAME KLED24 type flashing light A flashing light support for KIAROS wall mounting A gate plate A complete technical manual Installation of the CAME AXO30K01 kit To program your CAME AX3024 operators You can configure your two CAME AX3024 operators, by consulting the product instructions on the Allo Remote control website by clicking here Configuration of the CAME ZLJ24 electrical cabinet For the configuration of the CAME ZLJ24 electrical cabinet, please refer to the product installation instructions which you can consult here Initialization of the Came TOPD4RBS remote control Programming the remote control using an old remote control (in four steps): For more information on programming your remote control, we invite you to consult the PDF instructions for the product on our site by clicking here Take your old and new remote controls. Move closer to your receiver (within a maximum distance of 5 m) Press the already programmed button on your old remote control for 10 seconds. Its LED should become fixed. You then have 20 seconds to register the button of your choice on your new remote control by holding it down. You can register multiple remote controls at once. Congratulations ! Your new remote control is programmed! To program my CAME AF43S plug-in radio card WARNING: DANGER OF ELECTRIC SHOCK. THIS PRODUCT SHOULD ONLY BE HANDLED OR INSTALLED BY QUALIFIED PERSONNEL. For more information on programming your receiver, we invite you to consult the product programming instructions on our site by clicking here How to program my remote control to my receiver Open the radio receiver (you must follow the antenna wire to spot it). Press the push button on the receiver. The latter is identifiable, because it says MEMO; REC; ENR; PROG on the radio board (for some receivers, just press the MEMO button once and release it. For others, you have to hold the MEMO button). A light on the radio board lights up or flashes. Press the button on your remote control for a second then release it. Wait for the light on the radio board to go out. Test the remote control and close your radio receiver. Well done ! Your remote control is now programmed. Installation of CAME DIR10 photocells To program your CAME DIR 10 photocells, you must: First, position them opposite each other Fix the photocells at a height of approximately 50 cm from the ground. Provide, if necessary, the housing for the base for recessed mounting and fix it Secure the box to the wall or base using the screws provided and any dowels Finally, select the type of power supply and make the necessary connections. Warning: to remove the card, only force on the indicated side. Secure the cover. For more information, we invite you to consult the manufacturer’s instructions here Installation of the CAME KLED24 flashing light For more information and details on the procedure to follow, you can consult the PDF instructions for use on our site by clicking here To install this flashing light, you must: Provide the necessary power cables. Open the flashing light (A) and pierce the base from the bottom (B). Route the cables coming from the cabinet through the hole. Next, attach the turn signal light base to the C-pillar using the appropriate screws and anchors. Connect the wires to the turn signal board. Close everything. CAME AXO30K01 kit FAQ Where can I find other CAME brand products? You can find other CAME brand products on Allo Remote Control by clicking on the link here
